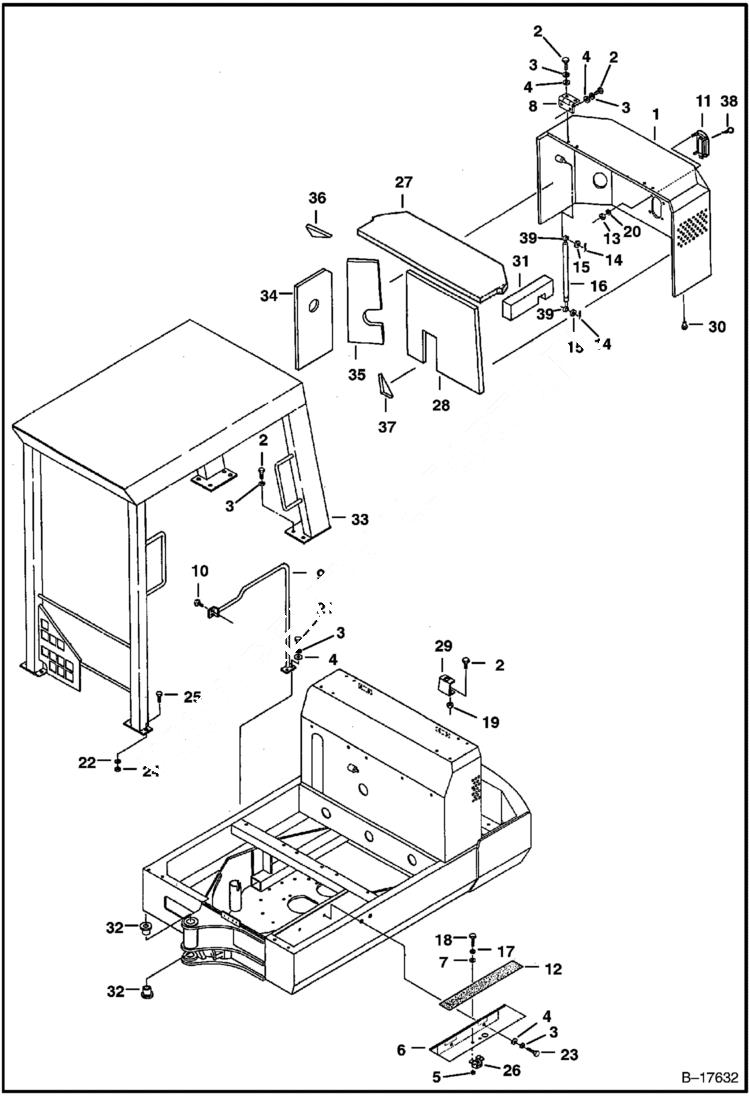

Запчасти Bobcat 220 MACHINE CANOPY & ENGINE COVER MAIN FRAME

1

6534813

COVER

2

1CM1025

BOLT

3

6EM100

WASHER

4

15EM100

WASHER

5

1DM5

NUT

6

6534822

LID Was 6533977 - D

7

15EM50

WASHER

8

6533959

HINGE

9

6535436

HANDLE

10

26GM8025

BOLT Was 26GM08026B - A

11

6660132

LATCH W/Ref. 38 - Was 6648421 - B

12

6593245

TREAD

13

61D4

NUT 5

14

COTR.PIN NLA - Was 13JM16016 - A

15

15EM80

WASHER

16

6654364

CYLINDER W/Ref. 39 - Was 6654052 - A

17

6EM50

LOCK-WSHR

18

1CM508

SCREW

19

1DM10

NUT

20

4E4

WASHER

21

1CM1020

BOLT

22

6EM120

WASHER

23

1CM1016

SCREW Was 1CM01015B - A

24

1DM12

LOCK NUT

25

1CM1235

BOLT

26

6535006

LATCH

27

INSULATION NLA - Was 6534756 - A

27

6535477

INSULATION

28

6535457

INSULATION fastens inside of hood

29

6534890

BRACKET

30

6653459

STOP

31

INSULATION NLA - fastens inside of hood - Was 6535458 - A

32

6533536

BUSHING

33

CANOPY NLA - Was 6661594 - A

34

6534758

INSULATION fastens inside of hood

35

INSULATION NLA - fastens inside of hood - Was 6534759 - A

36

INSULATION NLA - Order 6535477 - Was 6534760 - A

37

INSULATION NLA - Order 6535477 - Was 6534761 - A

38

6650682

KEY LL-22

38

6650683

KEY LL-24

39

6664042

CLEVIS
