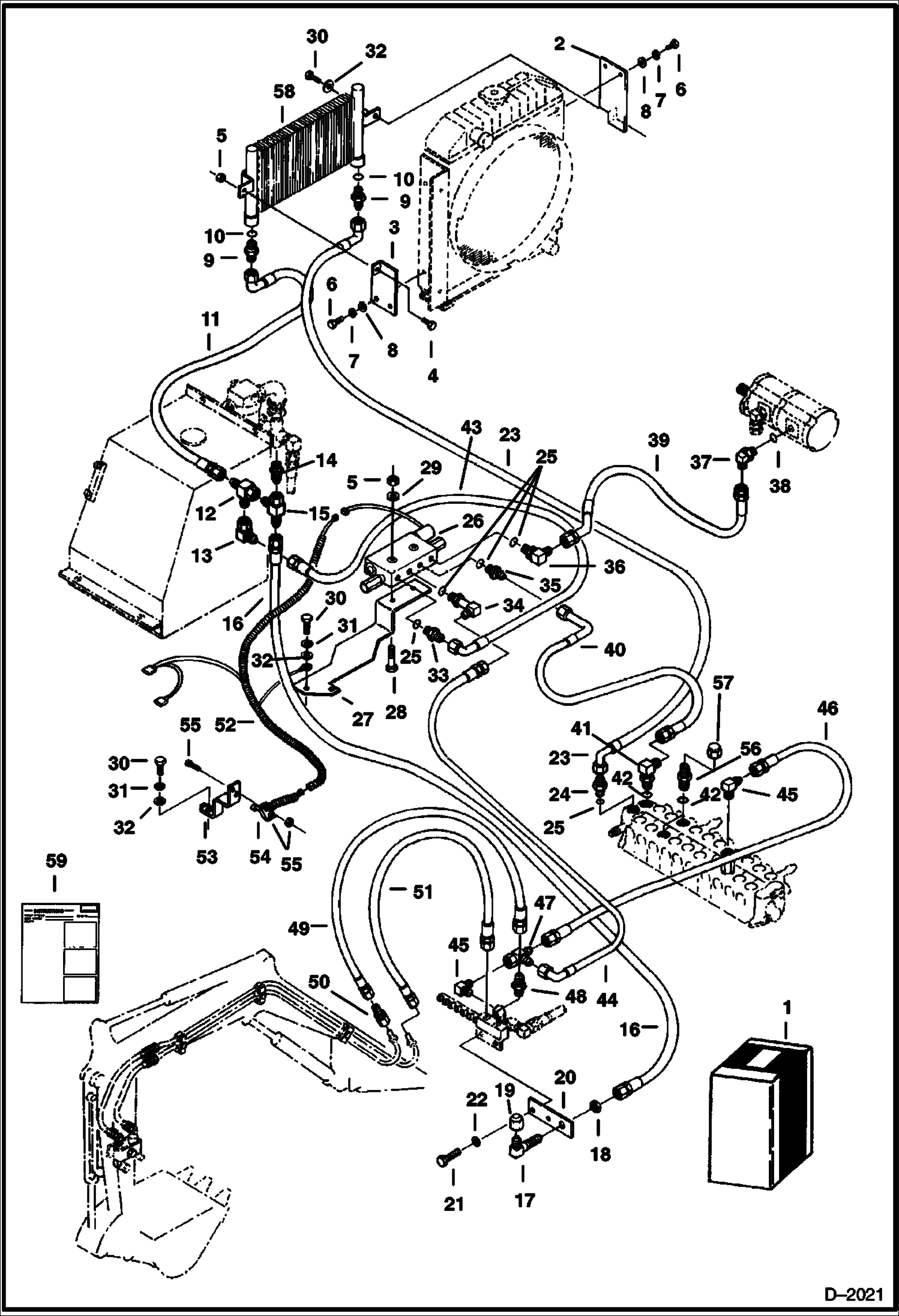

Запчасти Bobcat 220 HI-FLOW AUXILIARY HYDRAULIC KIT (S/N 508211001-11308) ACCESSORIES & OPTIONS

1

6535498

KIT Hi-Flow Auxiliary Hyd. - Incls. Ref. 2-59

2

6535494

BRACKET

3

6535486

BRACKET

4

1CM1016

SCREW

5

39DM10

NUT

6

1CM616

SCREW

7

6EM60

WASHER, SPRING

8

1EM60

WASHER

9

15KB1012

FITTING, HYD CONNECTOR W/Ref. 10 - Was 755055B - A

10

79K12

O RING 10

11

6535491

HOSE

12

6535460

TEE

13

11K5

FITTING 90 degree

14

6655751

ADAPTER

15

13K7

FITTING

16

6535496

HOSE

17

88F7

ELBOW Bulkhead

18

86F7

LOCK NUT

19

36K7

FITTING

20

6535495

BRACKET

21

1CM1025

BOLT

22

6EM100

WASHER

23

6535492

HOSE

24

6655835

ADAPTER W/Ref. 25

25

79K8

O RING 10

26

6657013

VALVE See Illustration SOLENOID VALVE/ C3245

27

6535482

BRACKET

28

1CM860

BOLT

29

1EM80

WASHER

30

1CM825

BOLT

31

6EM80

WASHER, SPRING

32

1EM80

WASHER

33

743108

FITTING W/Ref. 25

34

6812820

ELBOW W/Ref. 25 - Was 6511914 - A

35

15K6

ADAPTER W/Ref. 25

36

17K6

ELBOW W/Ref. 25

37

17K7

ELBOW W/Ref. 38

38

79K10

O RING 10

39

6535488

HOSE

40

6535490

HOSE

41

6654376

ELBOW W/Ref. 42

42

79K6

O RING 10

43

6618193

HOSE

44

6535493

HOSE

45

6654378

ELBOW

46

6535489

HOSE

47

13K5

TEE

48

6656007

ADAPTER

49

6535497

HOSE

50

6535487

ADAPTER

51

6535053

HOSE Existing Component

52

6536140

HARNESS

53

6535463

BRACKET

54

6579357

SWITCH

55

6646840

HARDWARE KIT Actuator, Screw & Nut

56

6654375

ADAPTER W/Ref. 42

57

36K5

CAP

58

6656008

OIL COOLER

59

6720401

INSTRUCTIONS
