Запчасти Bobcat 220 FUEL SYSTEM POWER UNIT

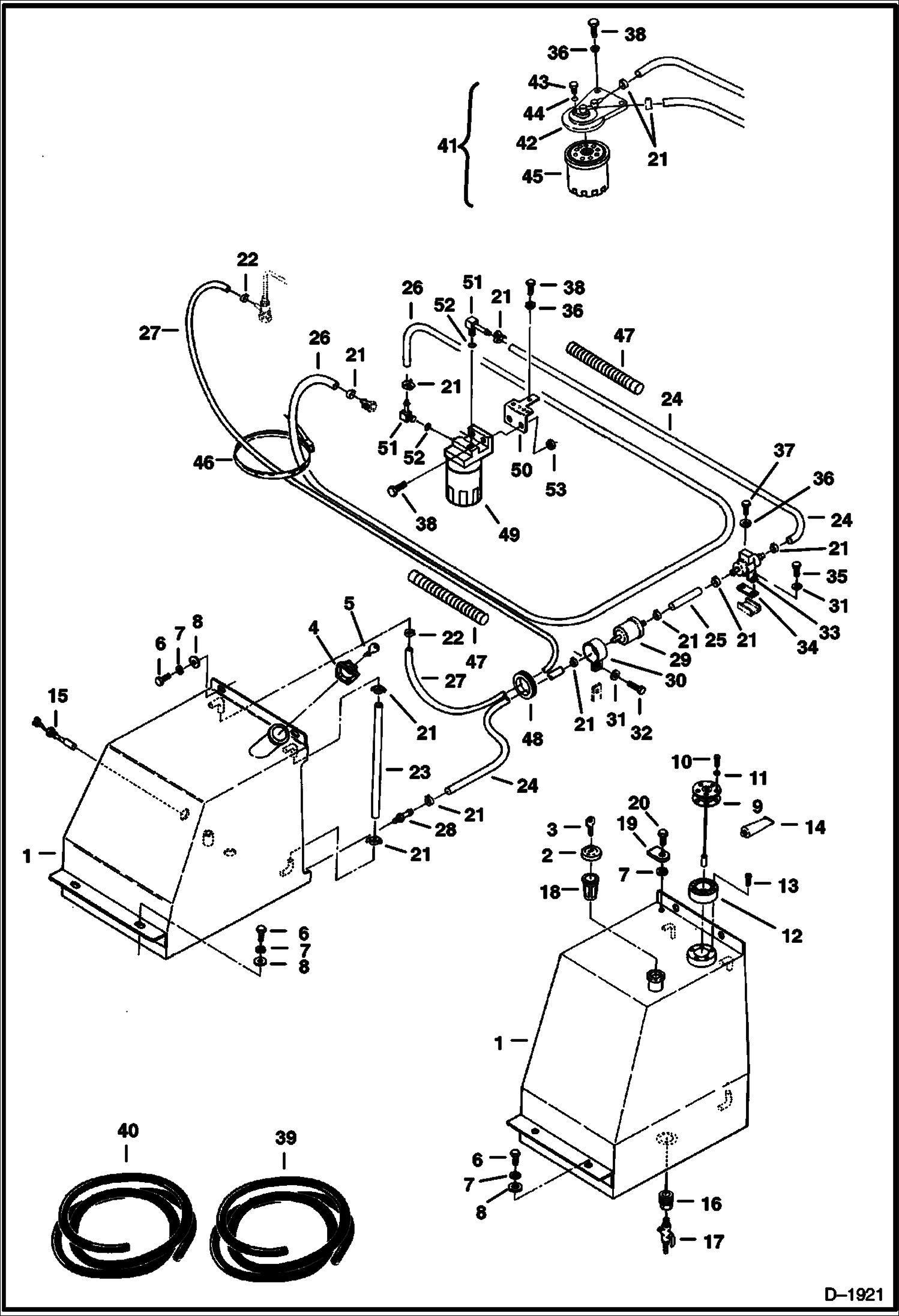

Схема запчастей Bobcat 220 - FUEL SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

TANK See BTIE-001 NLA - Canopy Models - Order Tank 6533930, Switch 6534833 & Cap 6661696

1

6533930

TANK Enclosed cab models & all models S/N 11309 & After

2

6535212

CAP Locking - Canopy Models - W/Ref. 3

3

KEY NLA - Was 6535217 - A

4

CAP NLA - Locking - Enclosed Cab Models - W/Ref. 5 - code GC020 - Order 6661696 - Was 6654373 - A

4

6661696

CAP, FUEL LOCKING Locking - Enclosed cab models - order key separately - Code PK510

5

6654374

KEY Code GC020

5

6587458

KEY Code PK510

6

1CM1020

BOLT

7

6EM100

WASHER

8

15EM100

WASHER

9

6535185

SENSOR Fuel - Canopy Models

10

1CM510

BOLT

11

6EM50

LOCK-WSHR

12

6534835

SPACER Sensor adapter - Canopy Models

13

7GM515

BOLT

14

6632501

SEALANT Spacer to Tank

15

6534833

SWITCH fuel - Enclosed Cab Models & all Models SN 11309 & Below

16

6535219

ADAPTER

17

6534704

DRAIN VALVE

18

6535215

STRAINER Canopy Models only

19

6533864

PLATE

20

1CM1025

BOLT

21

42HS04

CLAMP, HOSE Was 6515575 - A

22

6535213

CLAMP

23

HOSE NLA - 12'' long (305mm) - Order Ref. 39

24

HOSE NLA - 18'' long (457mm) - Order Ref. 40

25

HOSE NLA - 4'' long (102mm) - Order Ref. 40

26

HOSE NLA - 53'' long (1346mm) - Order Ref. 40

27

6651914

PIPE 48'' long (1220mm)

28

1317483

NIPPLE

29

6633977

FILTER Was 6511393 - A

30

3918244

BAND

31

6EM60

WASHER, SPRING

32

1CM610

BOLT

33

6535182

FUEL PUMP

34

6652023

CUSHION

35

1CM616

SCREW Was 1CM615

36

6EM80

WASHER, SPRING

37

1CM815

BOLT

38

1CM820

BOLT

39

6653483

HOSE Bulk - Sold Per Foot

40

6577822

HOSE bulk - sold per foot

41

FILTER See BTIE-024 NLA - assy - W/Ref. 42-45 - Was 6648830 - A

42

6652774

HEAD

43

6652775

PLUG

44

2KM75

SEAL,ORIN Was 12KM00075B - A

45

6640801

FILTER Was 3974703B - A

46

6610510

TIE

47

6535214

COVER Bulk - Sold Per Foot

48

6535216

GROMMET

49

6667353

FILTER ASSY See BTIE-024 Fuel - Was 6657020 - A

49

6667352

FILTER, FUEL W/SEPARATOR 12 Was 6647773 - A

49

6658180

PLUG, BLEED

50

6587372

PLATE

51

6657083

ELBOW W/Ref. 52

52

79K8

O RING 10

53

1DM8

NUT
