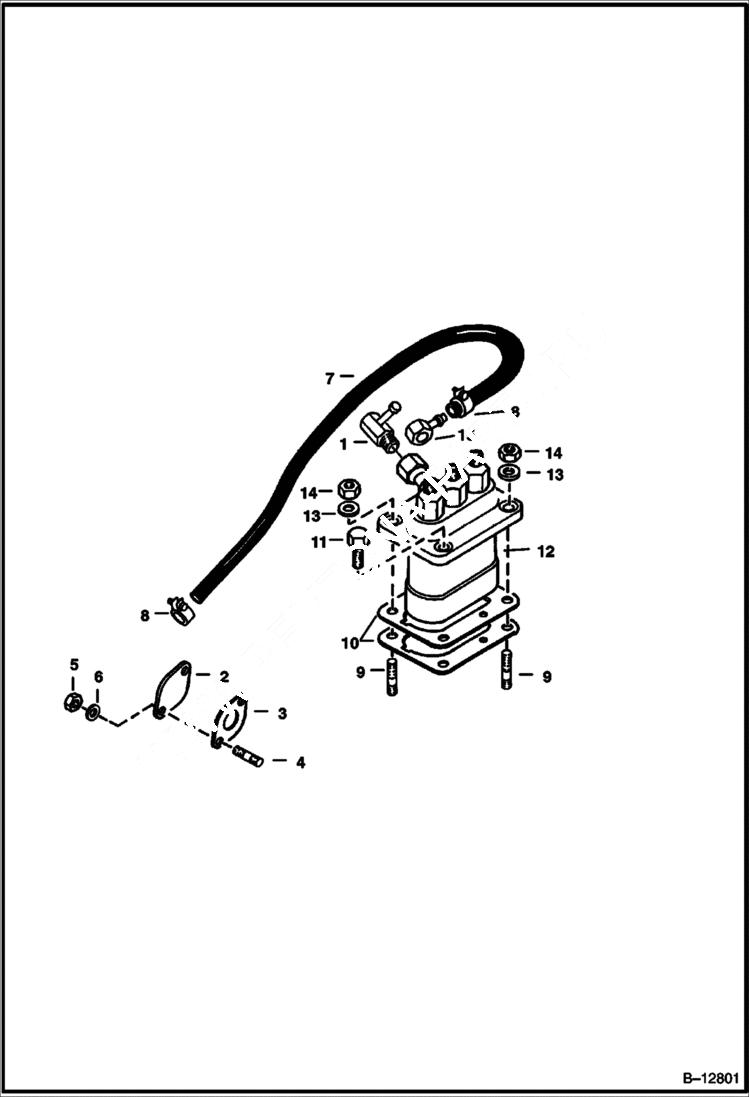

Запчасти Bobcat 220 FUEL & INJECTION PUMP POWER UNIT

1

6598102

VALVE jet start - Was 3974956B - D

2

6652685

COVER

3

3974502

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit

4

3974503

STUD

5

1DM6

NUT

6

6EM60

WASHER, SPRING

7

6652662

PIPE W/Ref. 8

8

3974252

CLIP

9

6652670

STUD

10

6652668

SHIM KIT

11

1CM820

BOLT Was 4CM00822B - A

12

6652665

PUMP Injection

13

6EM80

WASHER, SPRING

14

6652792

NUT

15

6513707

JOINT Was 6652658 - A
