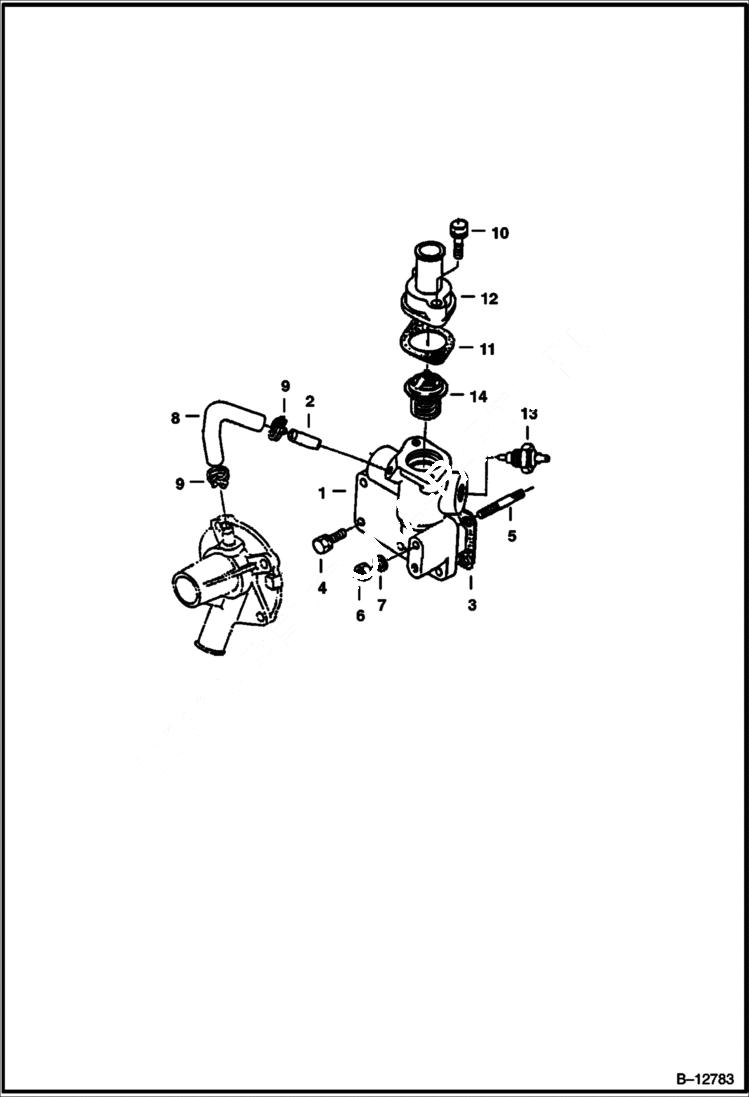

Запчасти Bobcat 220 WATER FLANGE & THERMOSTAT POWER UNIT

1

6652743

FLANGE W/Ref. 2

2

6652745

PIPE

3

6666777

GASKET See Illustration UPPER GASKET KIT/ C3243 included W/upper gasket kit - Was 6599110 - A

4

1CM616

SCREW Was 4CM616 - A

5

6652746

STUD

6

1DM6

NUT

7

6EM60

WASHER, SPRING

8

6652747

HOSE

9

6680580

CLAMP Was 6652748 - A

10

4CM635

BOLT

11

6681757

GASKET THERMOSTAT See Illustration UPPER GASKET KIT/ C3243 Included W/upper gasket kit - Was 6666813 - A

12

6599147

OUTLET

13

6652752

SENDOR Temp.

14

6652760

THERMOSTAT
