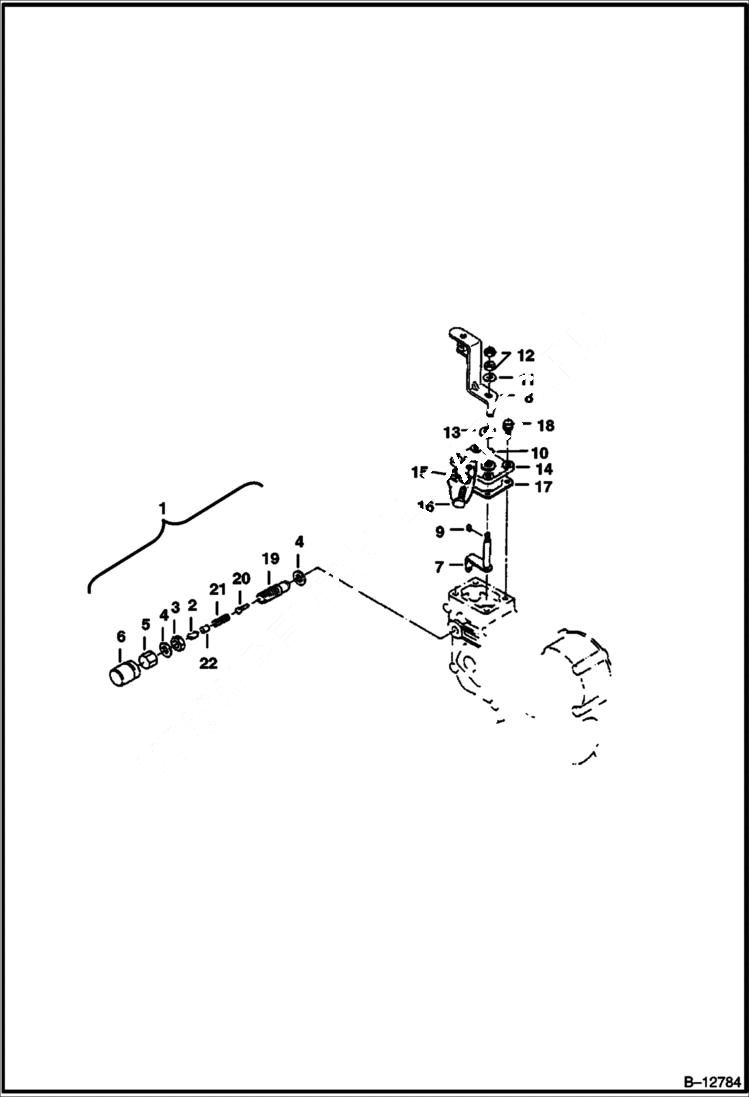

Запчасти Bobcat 220 SPEED CONTROL PLATE POWER UNIT

1

6652690

CONTROL ASSY.

2

6652691

CONTROL W/Ref. 3 & 19-22

3

6652695

NUT

4

6698120

GASKET Was 3974403 - A

5

3974131

NUT

6

3974130

CAP

7

6652706

LEVER

8

6652709

LEVER

9

6969805

KEY,FEATHER Was 15JM00410B - A

10

6652793

O-RING

11

6652710

WASHER

12

25DM6

NUT

13

2EM7

WASHER

14

6652711

LEVER

15

1DM60

NUT

16

6652712

STOPPER

17

6666775

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit - Was 6599109 - A

18

1CM620

BOLT Was 4CM620 - A

19

6652692

BODY W/Ref. 20

20

PIN NLA

21

SPRING NLA - Was 6652694 - A

22

3974128

FLANGE
