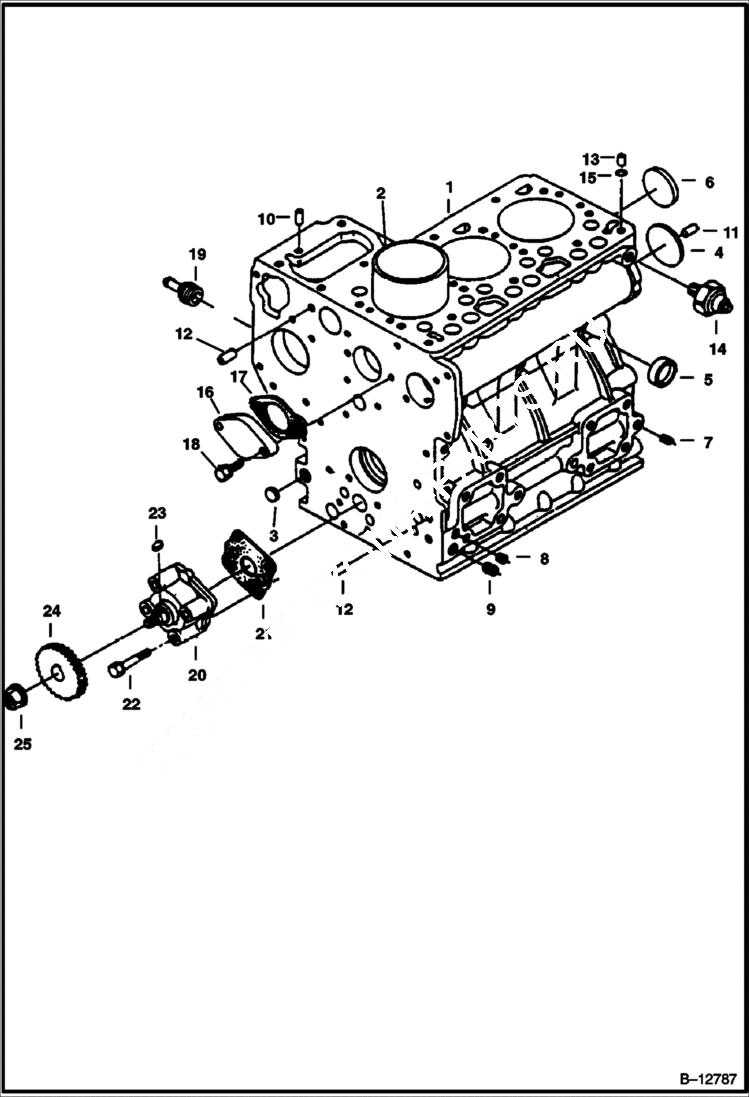

Запчасти Bobcat 220 CRANKCASE POWER UNIT

1

6652570

CRANKCASE W/Ref. 2-13

2

6599985

LINER Was 6652577 - A

3

6652572

PLUG

4

6652573

PLUG

5

3974033

CAP

6

3974433

PLUG

7

6598116

PLUG Was 6652797 - A

8

6652574

PLUG

9

6652575

PLUG

10

3974394

PIN

11

21JM814

PIN dowel

12

3974039

PIN

13

3974037

PIN

14

6969775

SWITCH, OIL PRESSURE Was 6652576 - A

15

3974038

O RING See Illustration UPPER GASKET KIT/ C3243 included W/upper gasket kit

16

COVER NLA - Was 6652579 - A

17

6666778

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit - Was 3974045B - A

18

6652580

BOLT

19

6599038

DRAIN VALVE

20

6652654

OIL PUMP

21

6666773

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit - Was 6599108 - A

22

6599067

BOLT

23

6969805

KEY,FEATHER Was 15JM00410B - A

24

6653580

GEAR Was 6652655 - A

25

6652656

NUT
