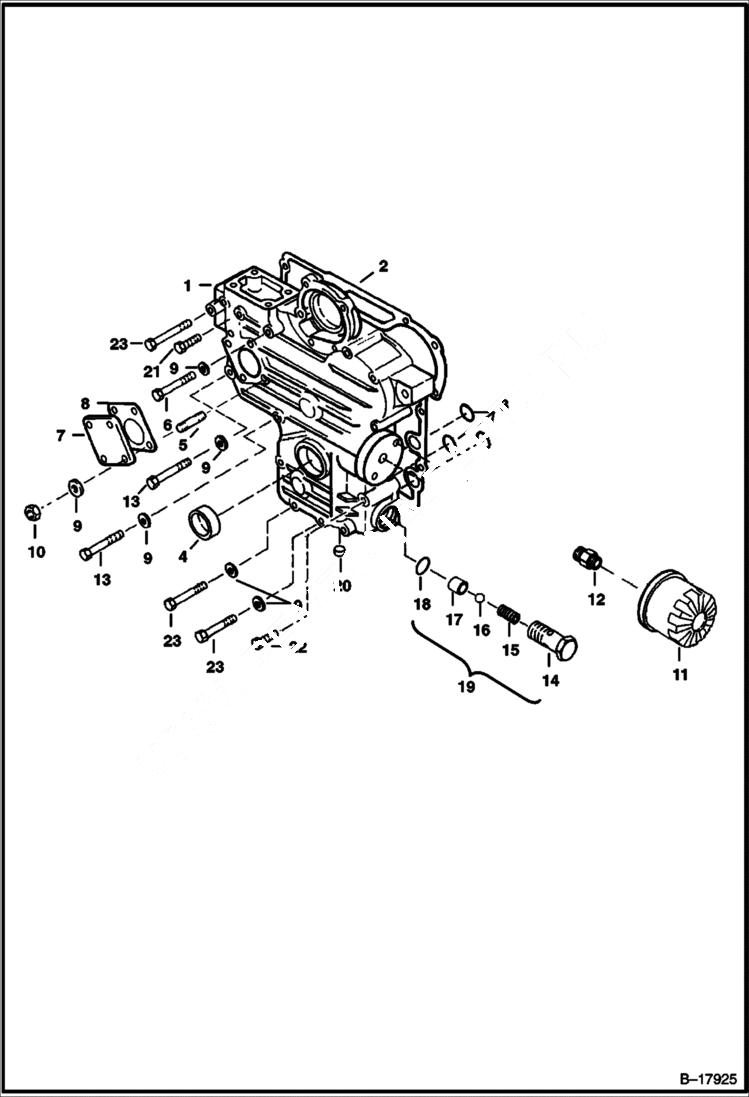

Запчасти Bobcat 220 GEARCASE POWER UNIT

1

6652589

CASE

2

6666795

GASKET Was 6652623 - A

3

6599081

O-RING See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit

4

6631475

SEAL

5

6652764

STUD

6

6652596

BOLT

7

3974460

COVER

8

6714543

GASKET See Illustration LOWER GASKET KIT/ C3244 included W/lower gasket kit - Was 6666785 - A

9

6EM60

WASHER, SPRING

10

1DM6

NUT

11

3974113

FILTER, OIL ENG 12 Oil filter

12

6652597

ADAPTER

13

6652593

BOLT

14

6598985

BODY

15

SPRING NSS

16

10J13

BALL

17

SEAT NSS

19

6652651

RELIEF VALVE W/Ref. 14-18

20

6667425

PLUG Was 6652797 - A

21

6652592

PIN

22

6652595

BOLT

23

6652594

BOLT
