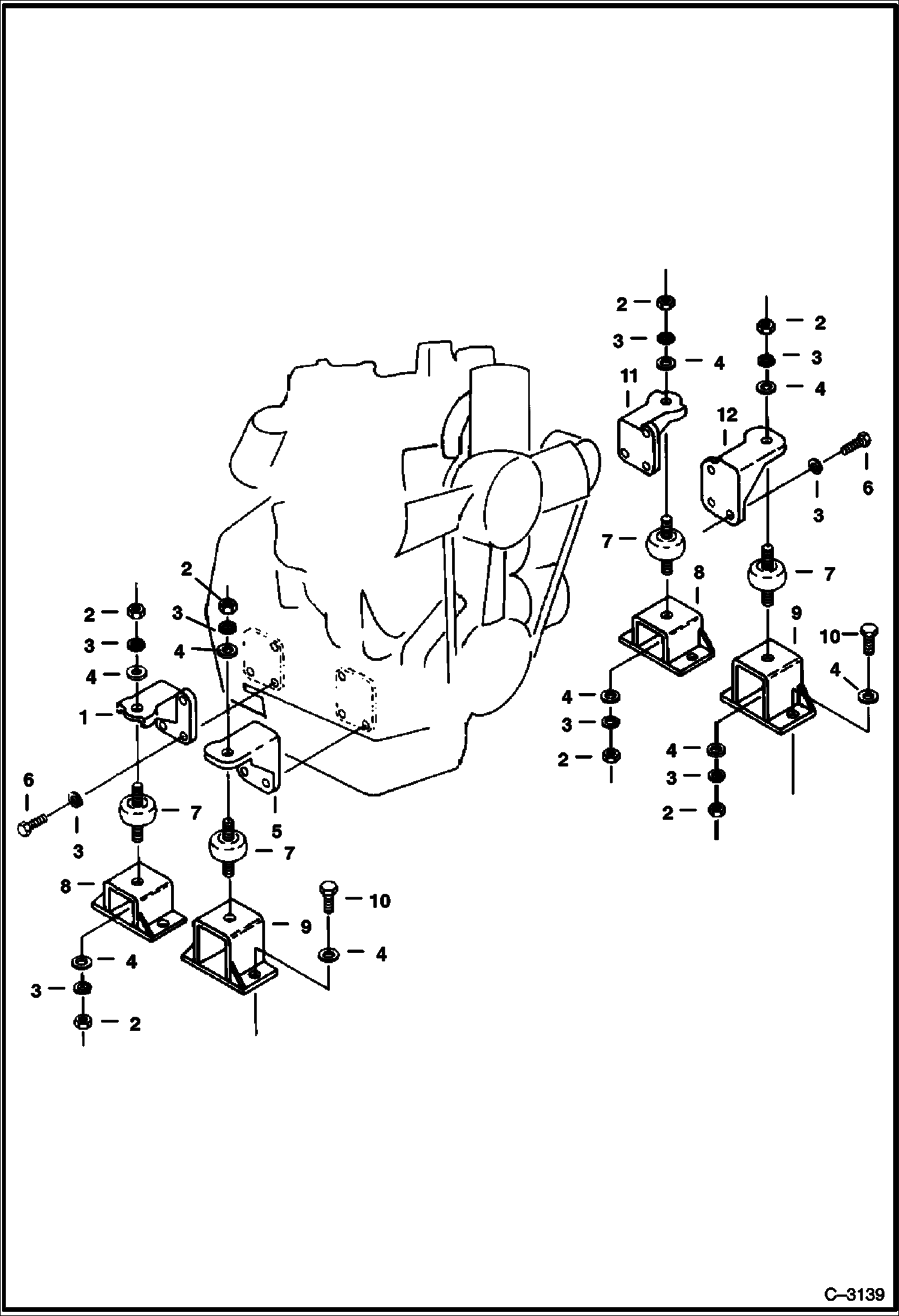

Запчасти Bobcat 220 ENGINE MOUNTING POWER UNIT

1

MOUNT NLA - Was 6535202 - A

2

2DM10

NUT Was 1DM00010B - B

3

6EM100

WASHER

4

15EM100

WASHER

5

MOUNT NLA - Was 6535203 - A

6

6684782

O-RING See Illustration UPPER GASKET KIT/ C3243 - included W/upper gasket kit - Was 3966602 - A

7

CUSHION NLA - Was 6535204 - A

8

6533808

MOUNT Was 6535205 - A

9

6533812

MOUNT Was 6535206 - A

10

1CM1020

BOLT

11

6534721

MOUNT

12

6534725

MOUNT
