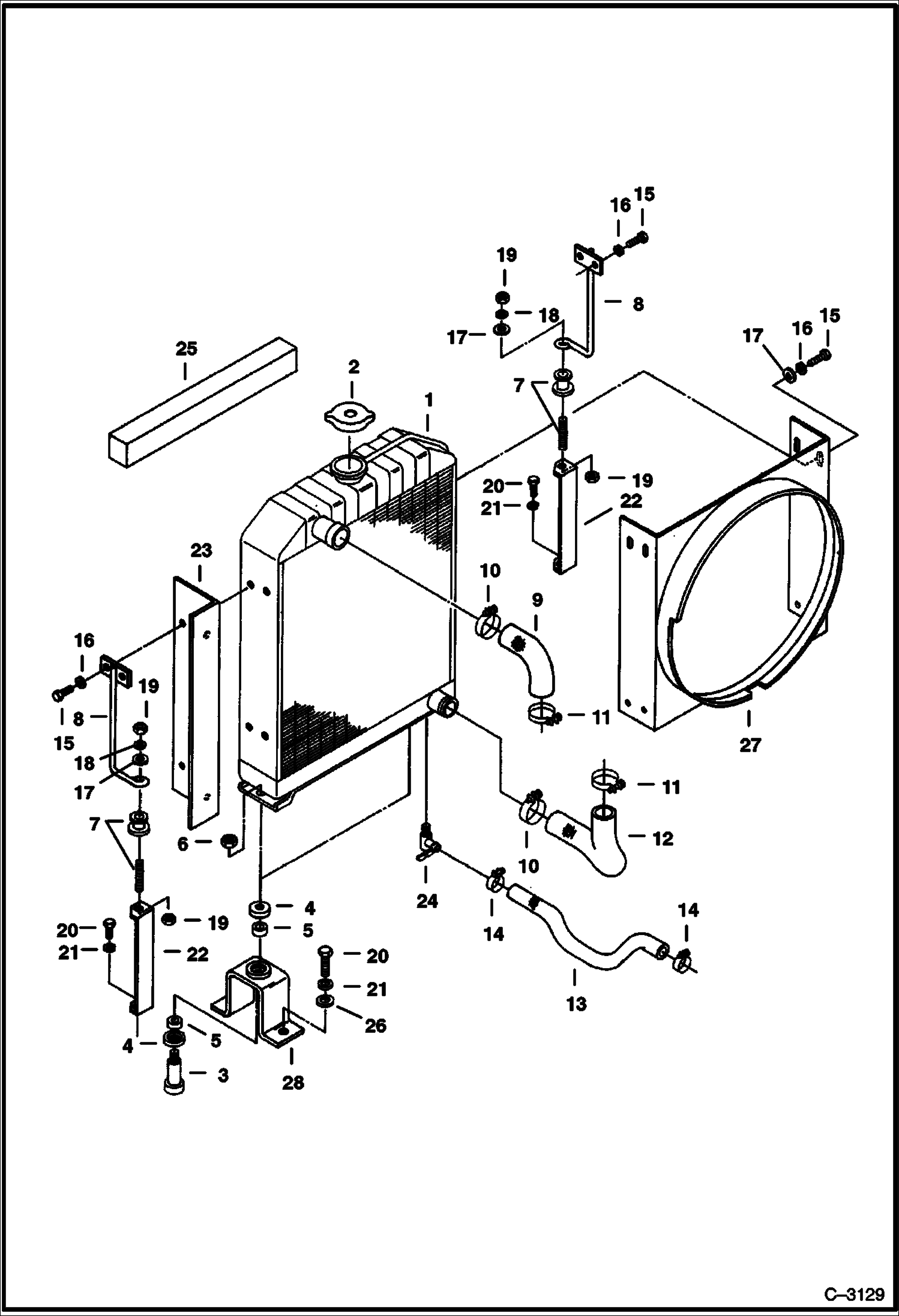

Запчасти Bobcat 220 RADIATOR POWER UNIT

1

RADIATOR NLA - assy. - W/Ref. 2 - Was 6651920 - A

2

6652778

CAP

3

6651922

BOLT

4

6651923

WASHER

5

6651924

CUSHION Rubber

6

6652779

NUT

7

6651925

CUSHION Rubber

8

6651926

BRACKET

9

6651927

HOSE

10

6651928

BAND Was 6652796 - A

11

6651929

CLAMP

12

6651930

HOSE

13

6651931

HOSE

14

3974679

BAND

15

1CM616

SCREW Was 1CM615

16

6EM60

WASHER, SPRING

17

15EM80

WASHER

18

6EM80

WASHER, SPRING

19

1DM8

NUT

20

1CM1016

SCREW Was 1CM01010B - B

21

6EM100

WASHER

22

6534710

MOUNT

23

6534711

MOUNT

24

6535200

DRAIN VALVE

25

6554274

INSULATION 48'' (1219,2 mm) long - Bulk Sold Per Foot

26

15EM100

WASHER

27

SHROUD NLA - Was 6654227 - A

28

6533827

MOUNT
