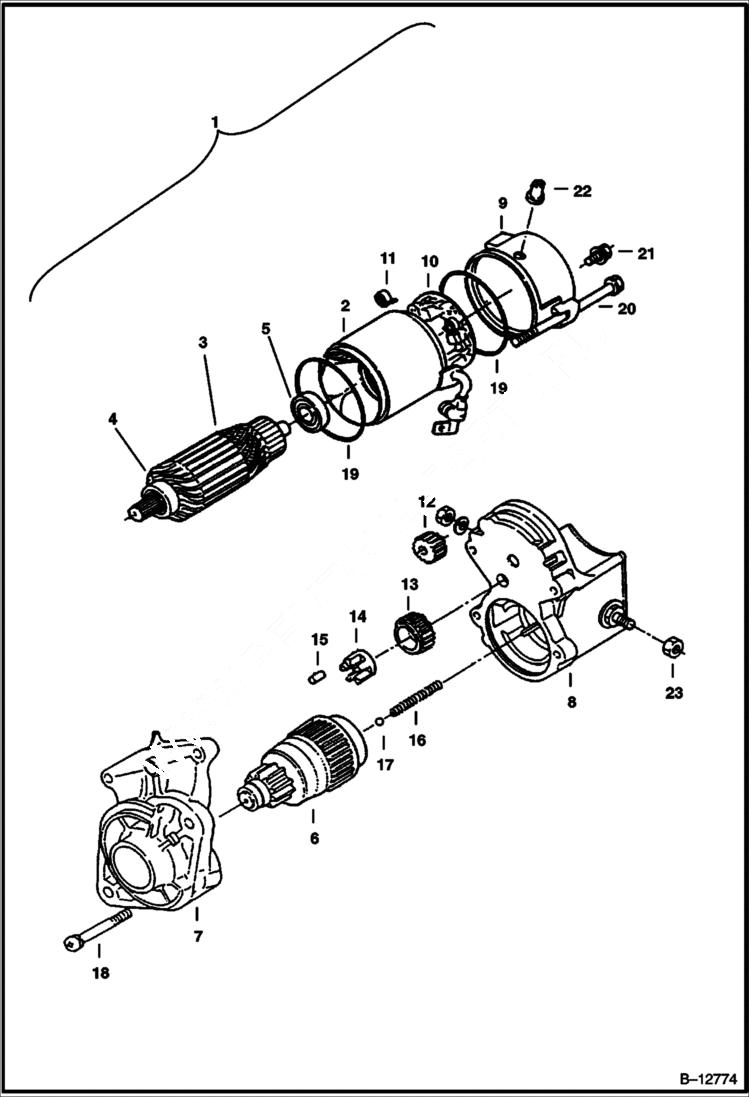

Запчасти Bobcat 220 STARTER (Kubota) ELECTRICAL SYSTEM

1

6652713

STARTER W/Ref. 2-23

2

6652714

BODY

3

3390002

ARMAT.ASY W/Ref. 4 & 5

4

3390012

BEARING

5

3390013

BEARING

6

6652715

CLUTCH

7

6652716

HOUSING

8

6652717

SWITCH

9

6652718

HOUSING

10

3390005

HOLDER,BR Brush

11

3974738

SPRING

12

3390011

GEAR

13

3974742

GEAR

14

3390092

RETAINER

15

3390091

ROLLER

16

3390094

SPRING

17

3390093

BALL

18

3390095

SCREW

19

3390007

O-RING

20

6652719

BOLT

21

3390008

BOLT ASSY

22

6652720

COVER

23

3390097

NUT Was 6652658 - A
