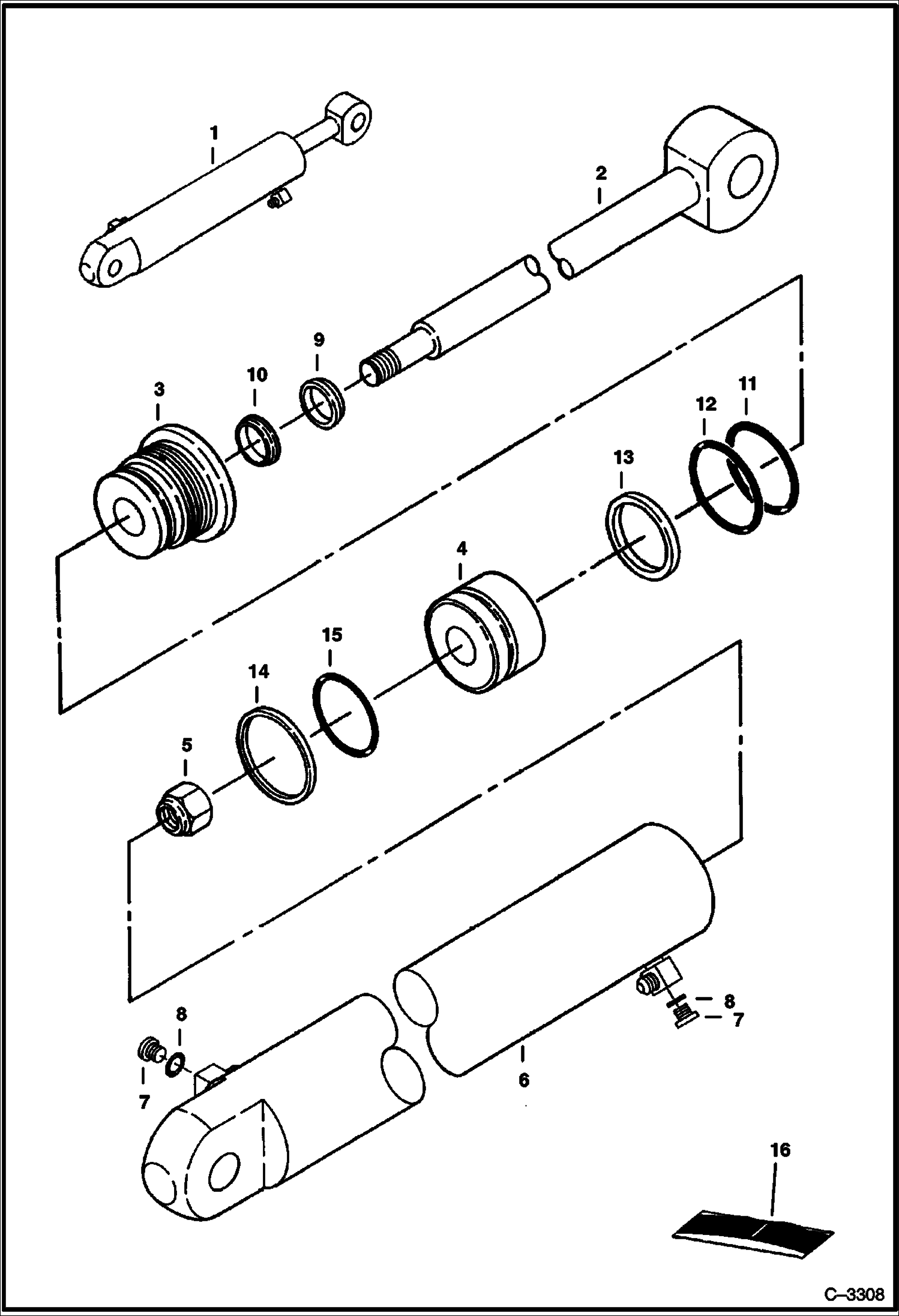

Запчасти Bobcat 220 BUCKET CYLINDER (Bobcat) HYDRAULIC SYSTEM

1

6588658

CYLINDER Ref. 2-7

2

6588663

ROD

3

6539236

HEAD

4

6537256

PISTON

5

92D16

NUT

6

6588660

HOUSING

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000002B - A

7

90KV2

PLUG W/Ref. 8 - tapered boss face

8

79K3

O RING 10 for flat boss face

8

95K3

O'RING for tapered boss face

9

RING NSS - Wiper

10

SEAL NSS

11

O-RING NSS

12

RING NSS - Back-up

13

O-RING NSS

14

RING NSS

15

O-RING NSS

16

6587985

SEAL KIT Ref. 5 & 7-13
