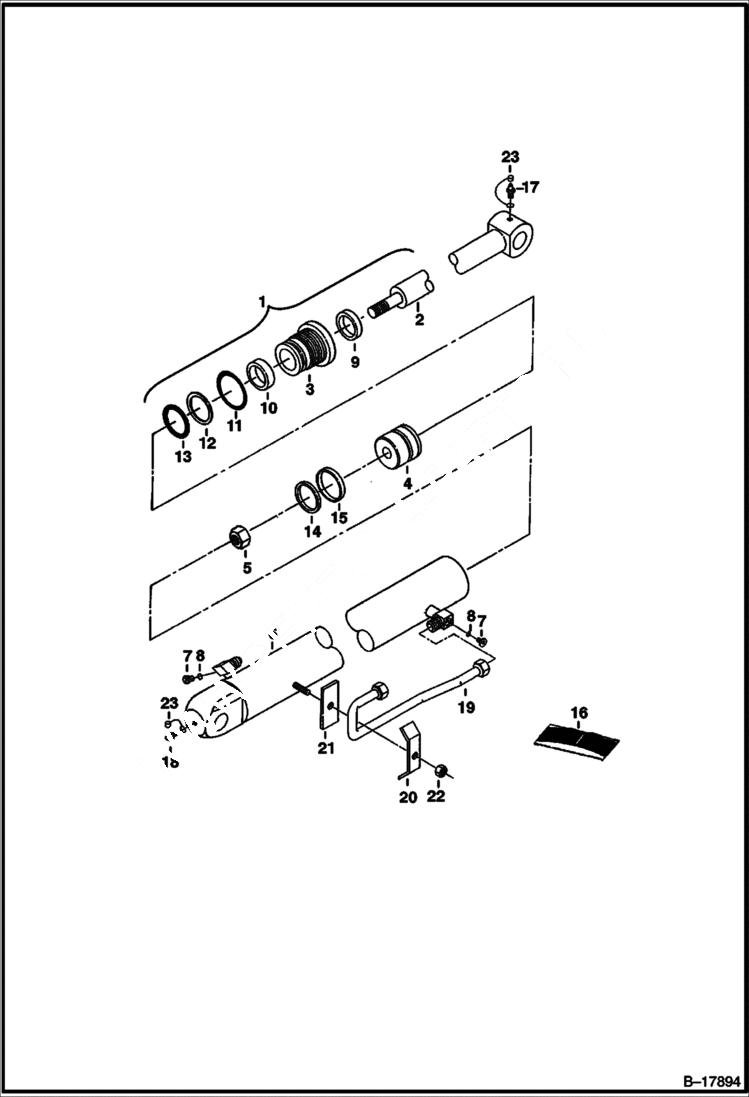

Запчасти Bobcat 220 BUCKET CYLINDER HYDRAULIC SYSTEM

1

CYLINDER NLA - Ref. 2-15 - Order Cyl. Assy. 6588658 - Was 6586439 - A

2

6586448

ROD

3

6537865

HEAD

4

6586440

PISTON

5

92D14

NUT

6

HOUSING NLA - Order cyl. assy. 6588658 - Was 6586446 - A

7

47K2

PLUG W/Ref. 8

8

79K3

O RING 10

9

6666543

WIPER, ROD CYL

10

6667325

SEAL

11

58K140

O-RING

12

73K328

RING Back-up

13

25K60128

O RING 10 Was 54K60128 - A

14

25K30126

O RING 10 Was 54K30126 - B

15

6519328

SEAL

16

6803282

SEAL KIT W/Ref. 9-15 - Was 6588308 - A

17

10H25

FITTING, GREASE 5

18

12H25

FITTING

19

6568507

TUBE

20

6502426

CLAMP

21

6586514

PLATE

22

49DM10

NUT Was 39DM00010B - B

23

6652943

COVER grease fitting
