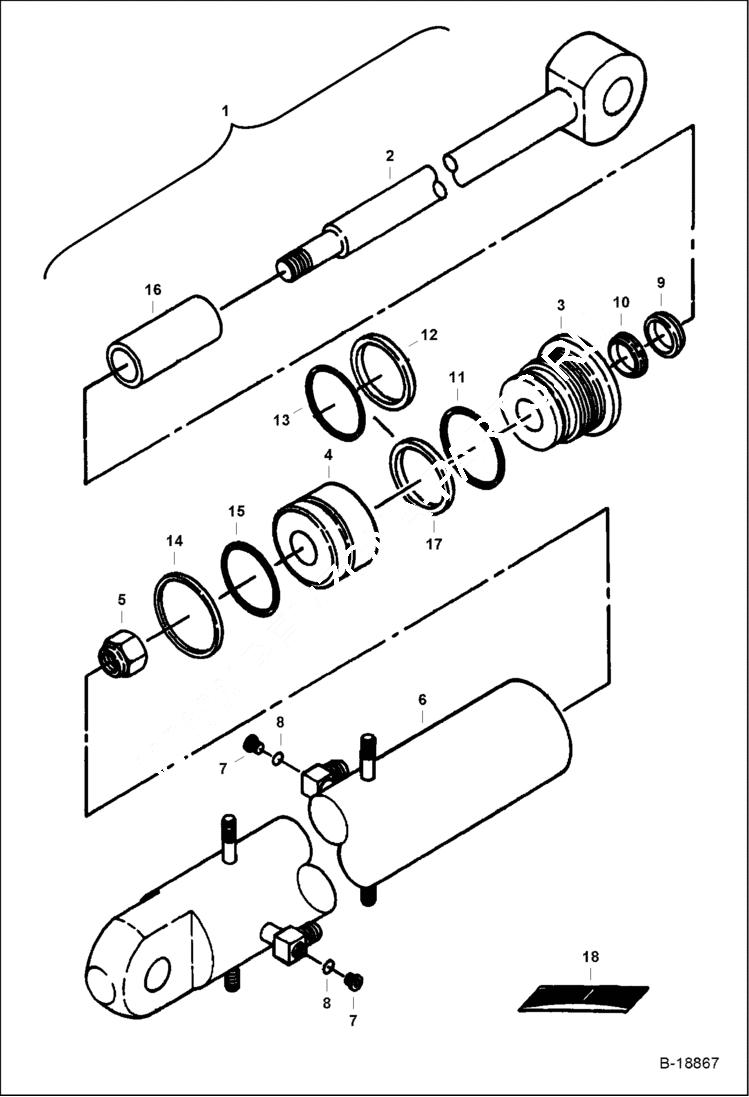

Запчасти Bobcat 220 BLADE CYLINDER (Bobcat) HYDRAULIC SYSTEM

1

6587000

CYLINDER Ref. 2-16

2

6587003

ROD

3

6586721

HEAD Was 5486721 - D

4

6587006

PISTON

5

92D14

NUT

6

6587007

HOUSING

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000002B - A

7

90KV2

PLUG W/Ref. 8 - tapered boss face

8

79K3

O RING 10 for flat boss face - Was 91K000002B - A

8

95K3

O'RING for tapered boss face

9

6666543

WIPER, ROD CYL

10

6667325

SEAL

11

82K229

ORING Was 58K229 - B

12

73K227

RING Back-up

13

25K40204

O-RING Was 54K40204 - B

14

25K30130

O RING 10 Was 54K30130 - B

15

6536642

RING

16

6587193

SPACER

17

7207224

SEAL, QUAD

18

6803281

KIT, SEAL Ref. 5, 9-11, 14, 15, & 17 - Was 6587008 - A
