Запчасти Bobcat 220 BLADE CYLINDER (Bobcat) HYDRAULIC SYSTEM

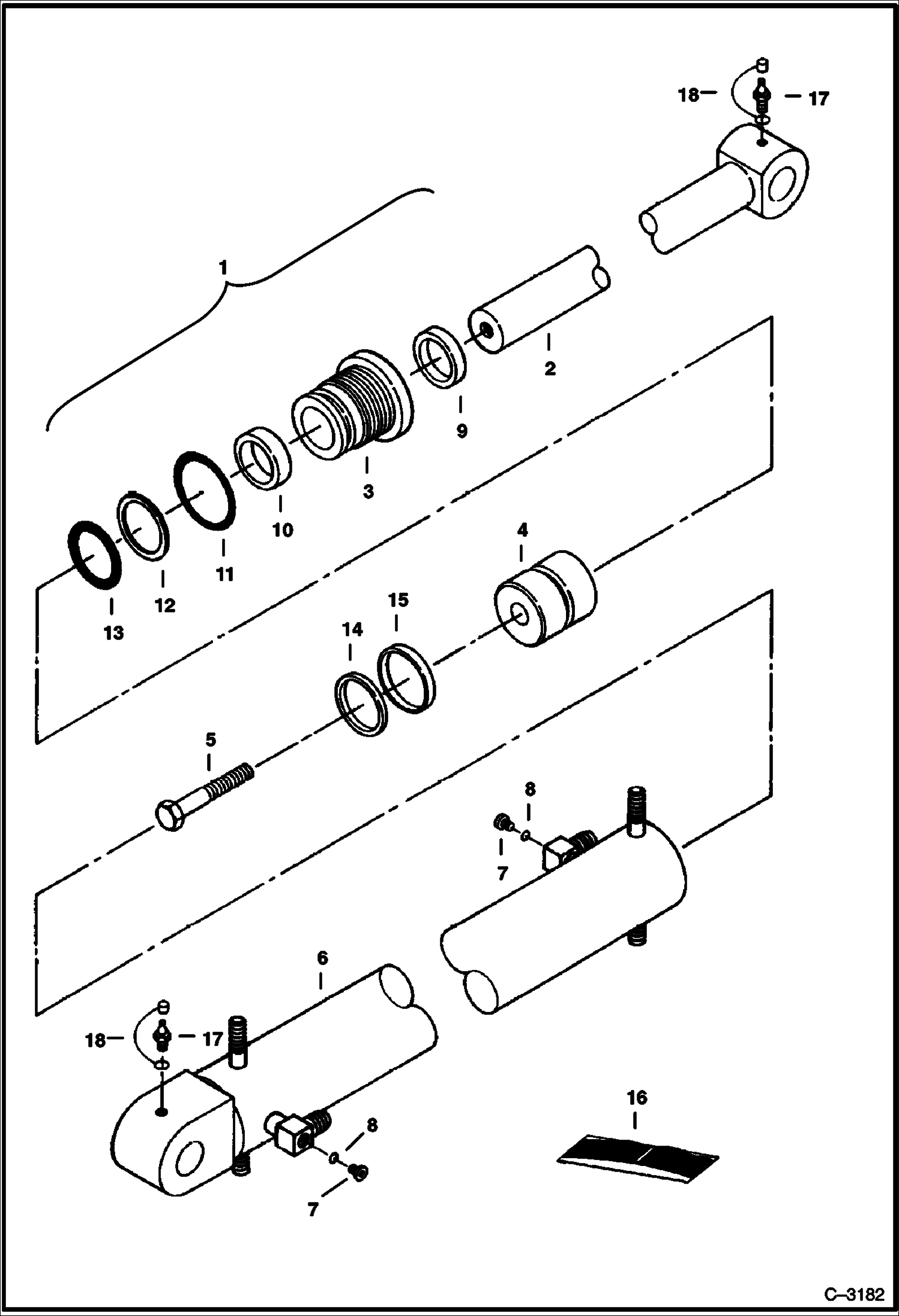

Схема запчастей Bobcat 220 - BLADE CYLINDER (Bobcat) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER See BTIE-003 NLA - Ref. 2-15 - Was 6534421 - A

2

6534425

ROD

3

6586721

HEAD Was 6534429 - A

4

6536311

CYLINDER

5

6536346

BOLT

6

6536317

HOUSING

7

47K2

PLUG W/Ref. 8

8

79K3

O RING 10 Was 91K000002B - A

9

6666543

WIPER, ROD CYL

10

6665185

SEAL

11

82K229

ORING Was 58K229 - B

12

73K227

RING back-up - Was 80K000227B - A

13

25K40204

O-RING Was 54K40204 - B

14

25K30130

O RING 10 Was 54K30130 - B

15

6536642

RING

16

6661047

SEAL KIT Ref. 9-15 - Was 6536671 - A

17

10H25

FITTING, GREASE 5

18

6652943

COVER grease fitting

Выбрано товаров: 18
