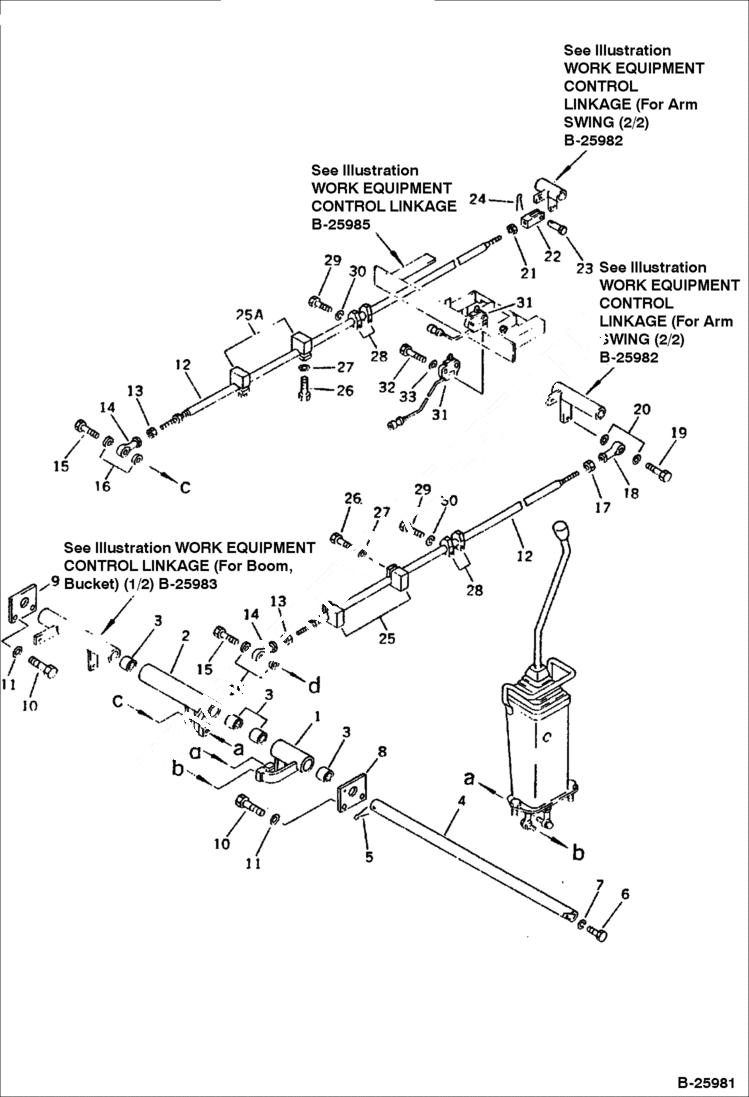

Запчасти Bobcat 130 WORK EQUIPMENT CONTROL LINKAGE For Arm, Swing 1/2 EXCEPT JAPAN CONTROL SYSTEM

1

6639865

LEVER

2

6639866

LEVER

3

6639287

BEARING

4

6639179

SHAFT

5

6637202

PIN, COTT

6

6636958

BOLT

7

6637134

WASHER

8

6639180

BRACKET

9

6639184

BRACKET

10

6636980

BOLT

11

6637158

WASHER

12

6642987

ROD

13

6637113

NUT

14

6637307

END

15

6636968

BOLT

16

6637157

WASHER

17

6637100

NUT LH threads

18

6637308

ROD END

19

6636968

BOLT

20

6637157

WASHER

21

6637100

NUT LH threads

22

6637271

YOKE

23

6637258

PIN

24

6637199

PIN, COTTER

25

6639188

SHIELD

25

6639724

SHIELD

26

6636968

BOLT

27

6637157

WASHER

28

6642986

PLATE

29

6636960

BOLT

30

6637134

WASHER

31

6643112

SWITCH limit

32

6636969

BOLT

33

6637157

WASHER
