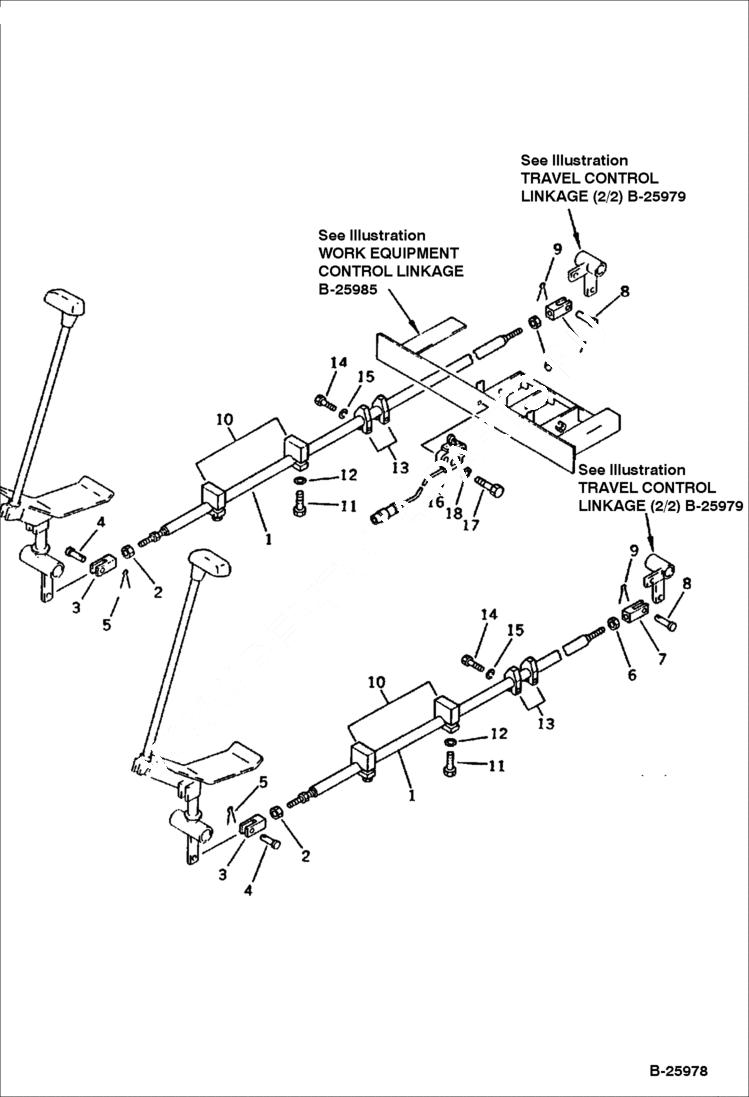

Запчасти Bobcat 130 TRAVEL CONTROL LINKAGE 1/2 CONTROL SYSTEM

1

6639728

ROD

2

6637113

NUT

3

6637264

YOKE

4

6637258

PIN

5

6637199

PIN, COTTER

6

6637100

NUT LH threads

7

6637271

YOKE

8

6637258

PIN

9

6637199

PIN, COTTER

10

6639188

SHIELD

11

6636968

BOLT

12

6637157

WASHER

13

6639723

SHIELD

14

6636960

BOLT

15

6637134

WASHER

16

6643112

SWITCH Komatsu S/N 20501-20878 - order with 6645569

16

6645569

SPRING Komatsu S/N 20501-20878 - order with 6643112

16

6643112

SWITCH Komatsu S/N 20879 & Abv

17

6636969

BOLT

18

6637157

WASHER
