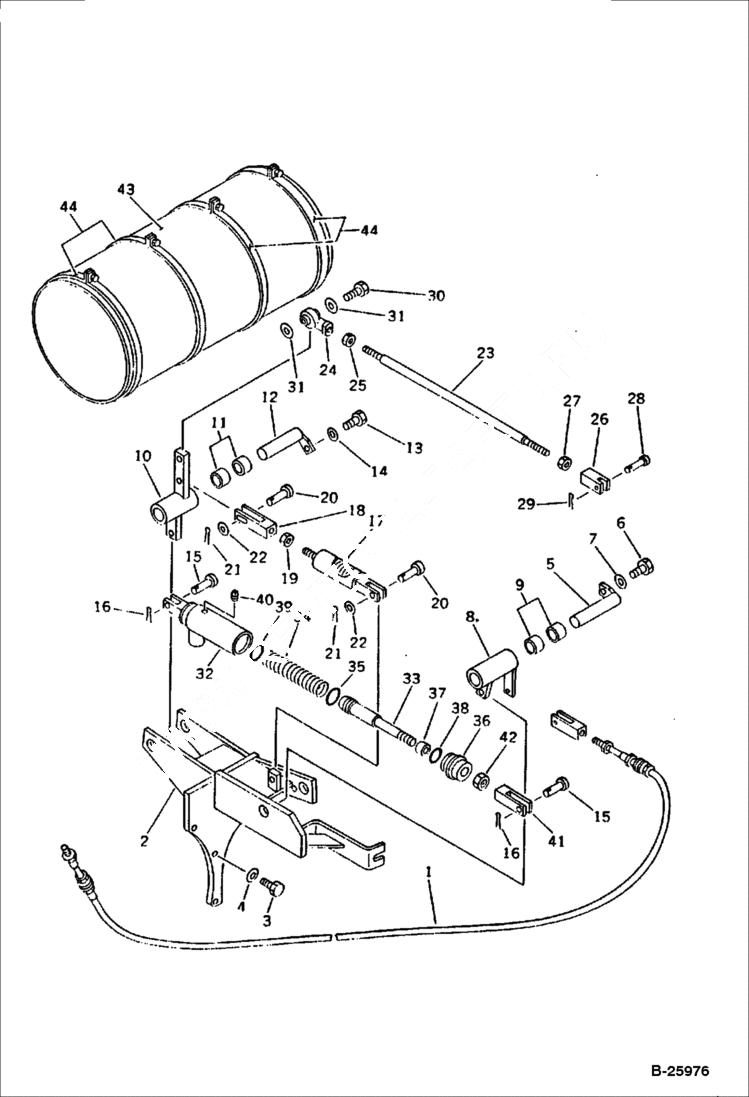

Запчасти Bobcat 130 FUEL CONTROL With Auto Deceleration With Mode Selector OLSS- Except Japan CONTROL SYSTEM

1

6639748

CABLE

2

6639743

BRACKET

3

6636971

BOLT

4

6637157

WASHER

5

6639190

SHAFT

6

6636957

BOLT

7

6637156

WASHER

8

6639746

LEVER

9

6637748

BUSHING

10

6639744

LEVER

11

6637748

BUSHING

12

6639745

SHAFT

13

6636957

BOLT

14

6637156

WASHER

15

6637258

PIN

16

6637199

PIN, COTTER

17

6639192

SPRING AS

17

6643055

SPRING

18

6639140

YOKE

19

NUT Was 01582-21008

20

6637259

PIN

21

6637199

PIN, COTTER

22

6637147

WASHER

23

6639747

ROD

24

6637308

ROD END LH threads

25

6637100

NUT LH threads

26

6639069

YOKE

27

6637113

NUT

28

6637253

PIN

29

6637194

PIN, COTTER

30

6636968

BOLT

31

6637157

WASHER

32

6639230

CYLINDER

32

6643063

CYLINDER

33

6643062

PISTON

34

6643065

SPRING

35

6642079

ORING ASY

36

6643064

PLUG

37

6643024

BUSHING

38

6637338

O-RING

39

6637413

O-RING

40

6637441

PLUG

41

6639193

YOKE

42

6637114

NUT

43

6639662

BAFFLE

44

6637633

CLAMP
