Запчасти Bobcat 130 TRACK SHOE Swamp Type 510 mm Wide (PC60L, PC60LS) UNDERCARRIAGE

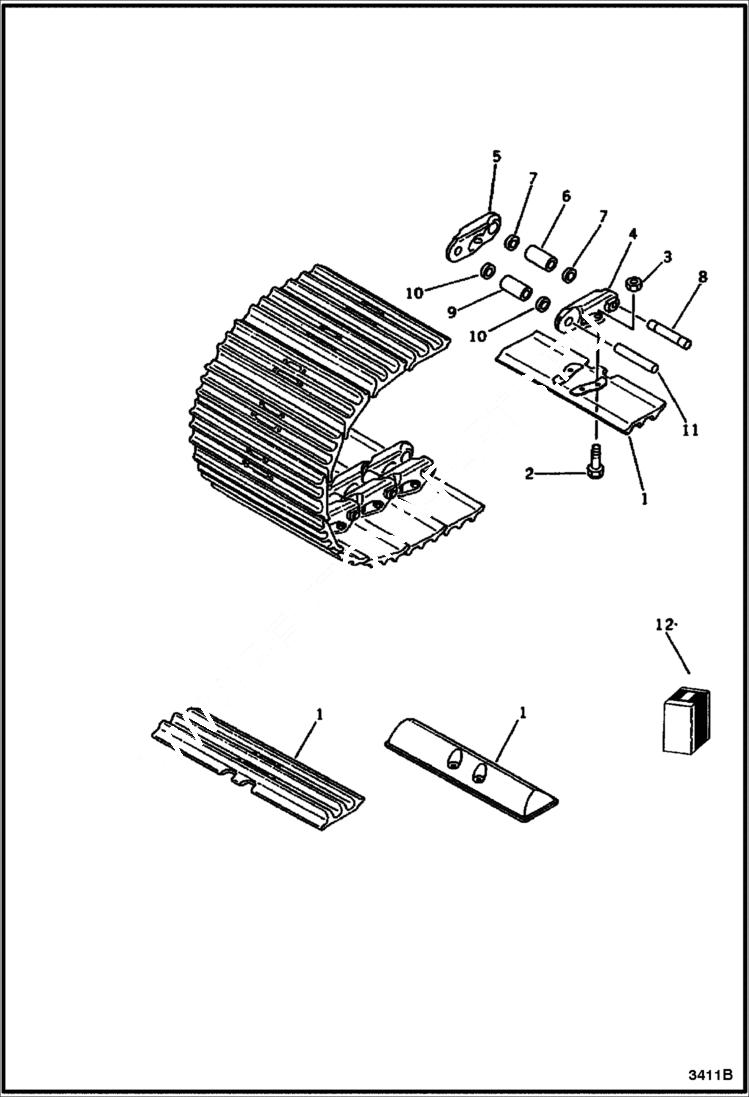

Схема запчастей Bobcat 130 - TRACK SHOE Swamp Type 510 mm Wide (PC60L, PC60LS) UNDERCARRIAGE

Артикул

Название

Примечание

Количество

1

TRACK SHOE ASS'Y Was 201-32-01721

1

TRACK SHOE ASS'Y Was 201-32-01720

1

6637825

SHOE

2

6637826

BOLT, SHO kit

3

6637166

NUT kit

4

TRACK LINK ASS'Y Was 201-32-00141

4

TRACK LINK ASS'Y Was 201-32-00140

4

6637827

LINK LH

5

6637828

LINK RH

5

TRACK LINK RH - Was 101-32-11131

6

6637829

BUSHING,

6

6637834

BUSHING, 0,10 mm oversized - select as required, not necessary to use all of the oversized parts

6

6637835

BUSHING, 0,18 mm oversized - select as required, not necessary to use all of the oversized parts

7

6637831

SEAL, DUST regular - W-type

8

6639064

PIN

8

6639132

PIN 0,10 mm oversized - select as required, not necessary to use all of the oversized parts

8

6639133

PIN 0,18 mm oversized - select as required, not necessary to use all of the oversized parts

9

6637830

BUSHING, master

9

6637836

BUSHING, 0,10 mm oversized - select as required, not necessary to use all of the oversized parts

9

6637837

BUSHING, 0,18 mm oversized - select as required, not necessary to use all of the oversized parts

10

6637832

SEAL, DUST master - W-type

11

6639065

PIN master

11

6639134

PIN, MAST 0,10 mm oversized - select as required, not necessary to use all of the oversized parts

11

6639135

PIN, MAST 0,18 mm oversized - select as required, not necessary to use all of the oversized parts

12

6637824

KIT, SHOE service kit

12

6637826

BOLT, SHO service kit

12

6637166

NUT service kit

Выбрано товаров: 27
