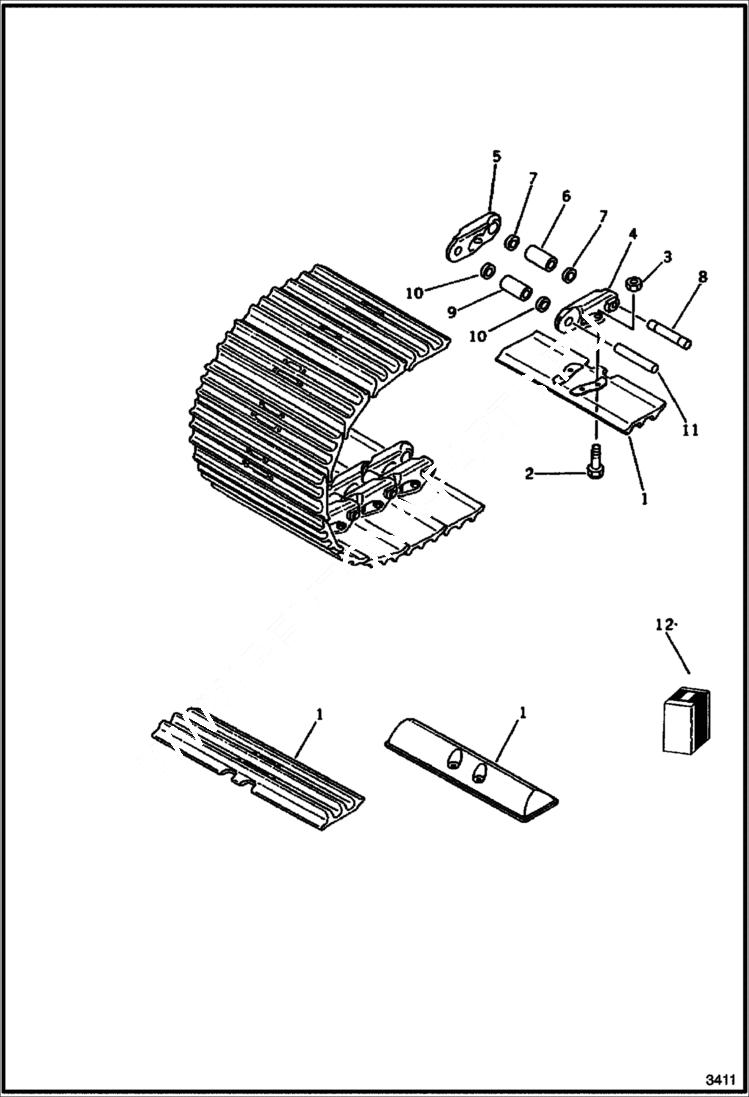

Запчасти Bobcat 130 TRACK SHOE Standard Track Shoe Triple Grouser 610 mm Wide (PC60L, PC60LS) UNDERCARRIAGE

1

TRACK SHOE ASS'Y Was 201-32-01421

1

TRACK SHOE ASS'Y Was 201-32-01420

1

6639067

SHOE

2

6639066

SHO BOLT kit

3

6637166

NUT kit

4

TRACK ASSY link - Was 201-32-00141

4

TRACK ASSY link - Was 201-32-00140

4

6637827

LINK LH

5

6637828

LINK RH

5

TRACK LINK RH - Was 101-32-11131

6

6637829

BUSHING,

6

6637834

BUSHING, 0,10 mm oversized - select as required, not necessary to use all of the oversized parts

6

6637835

BUSHING, 0,18 mm oversized - select as required, not necessary to use all of the oversized parts

7

6637831

SEAL, DUST regular - W-type

8

6639064

PIN

8

6639132

PIN 0,10 mm oversized - select as required, not necessary to use all of the oversized parts

8

6639133

PIN 0,18 mm oversized - select as required, not necessary to use all of the oversized parts

9

6637830

BUSHING, master

9

6637836

BUSHING, 0,10 mm oversized - select as required, not necessary to use all of the oversized parts

9

6637837

BUSHING, 0,18 mm oversized - select as required, not necessary to use all of the oversized parts

10

6637832

SEAL, DUST master - W-type

11

6639065

PIN master

11

6639134

PIN, MAST 0,10 mm oversized - select as required, not necessary to use all of the oversized parts

11

6639135

PIN, MAST 0,18 mm oversized - select as required, not necessary to use all of the oversized parts

12

6639062

KIT, SHOE service kit

12

6639066

SHO BOLT service kit

12

6637166

NUT service kit
