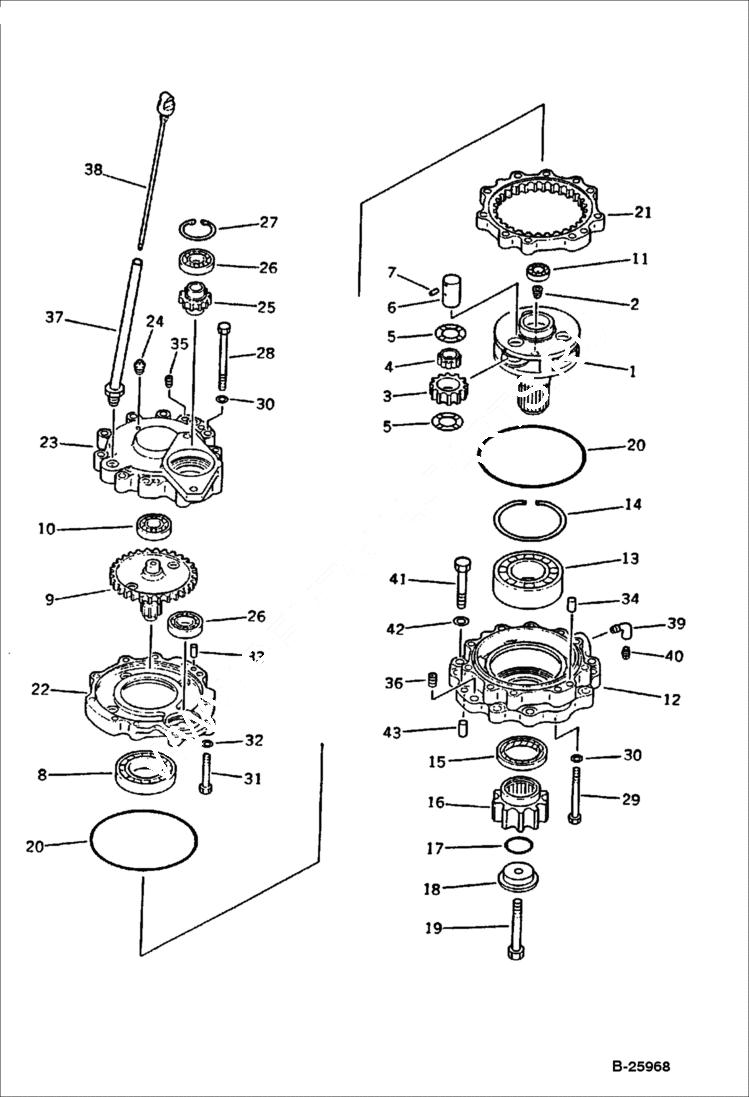

Запчасти Bobcat 130 SWING MACHINERY SWING AND FINAL DRIVE

1

6643033

MACHINERY

1

6639687

CARRIER

2

6637447

PLUG

3

6639688

GEAR

4

6639690

BEARING

5

6639691

WASHER

6

6639689

SHAFT

7

6637190

PIN, ROLL

8

6637328

BEARING

9

6639032

GEAR

10

6637327

BEARING

11

6645554

BEARING

12

6639682

CAGE

13

6637324

BEARING

14

6637239

RING, SNAP

15

6637428

SEAL, OIL

16

6639695

GEAR

17

6637363

O-RING

18

6639692

RETAINER

19

6637009

BOLT

20

6639686

O-RING

21

6639685

GEAR

22

6639683

HOUSING

23

6639684

COVER

24

6637442

PLUG

25

6639031

GEAR

26

6637325

BEARING

27

6637233

RING, SNAP

28

6637008

BOLT

29

6637006

BOLT

30

6637158

WASHER

31

6636985

BOLT

32

6637158

WASHER

33

6637176

PIN, DOWEL

34

6637178

PIN, DOWEL

35

6637465

PLUG

36

6637467

PLUG

37

6639693

INLET

38

6639694

GAUGE

39

6637645

ELBOW

40

6637443

PLUG

41

6636999

BOLT

42

6637160

WASHER

43

6637179

PIN, DOWE
