ELECTRICAL SYSTEM With Auto Deceleration With Mode Selector OLSS

Запчасти Bobcat 130 ELECTRICAL SYSTEM With Auto Deceleration With Mode Selector OLSS ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

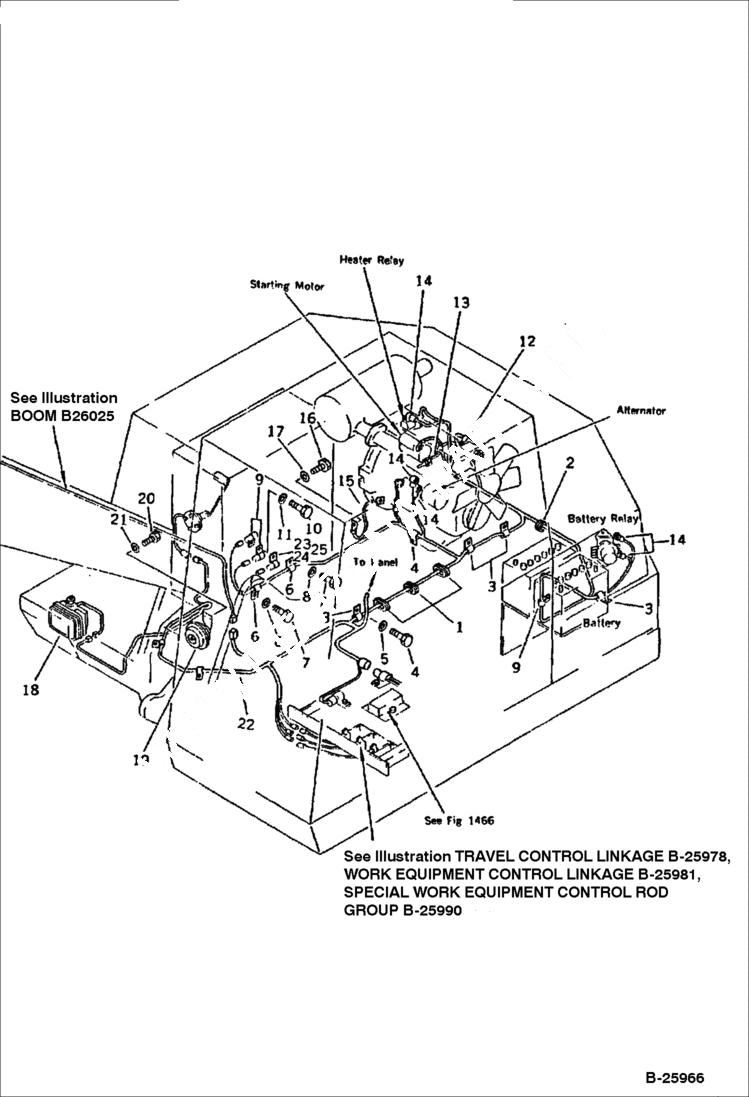

Схема запчастей Bobcat 130 - ELECTRICAL SYSTEM With Auto Deceleration With Mode Selector OLSS ENGINE RELATED PARTS AND ELECTRICAL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6637879

GROMMET

2

6637703

GROMMET

3

6637688

CLIP

4

6636965

BOLT

5

6637157

WASHER

6

6637694

CLIP

7

6636965

BOLT

8

6637157

WASHER

9

6637689

CLIP

10

6636965

BOLT

11

6637157

WASHER

12

6637693

CLIP

13

6639674

WIRE

14

6637709

CAP

15

6639669

WIRE

16

6636965

BOLT

17

6637157

WASHER

18

6639889

LAMP

18

6639888

BULB

19

6637727

HORN

20

6636957

BOLT

21

6637156

WASHER

22

6639672

WIRE ASSY for auto deceleration

22

6639890

DIODE

22

6642981

WIRE ASS' for mode selector

22

6639890

DIODE

23

6637689

CLIP

24

6636965

BOLT

25

6637157

WASHER
