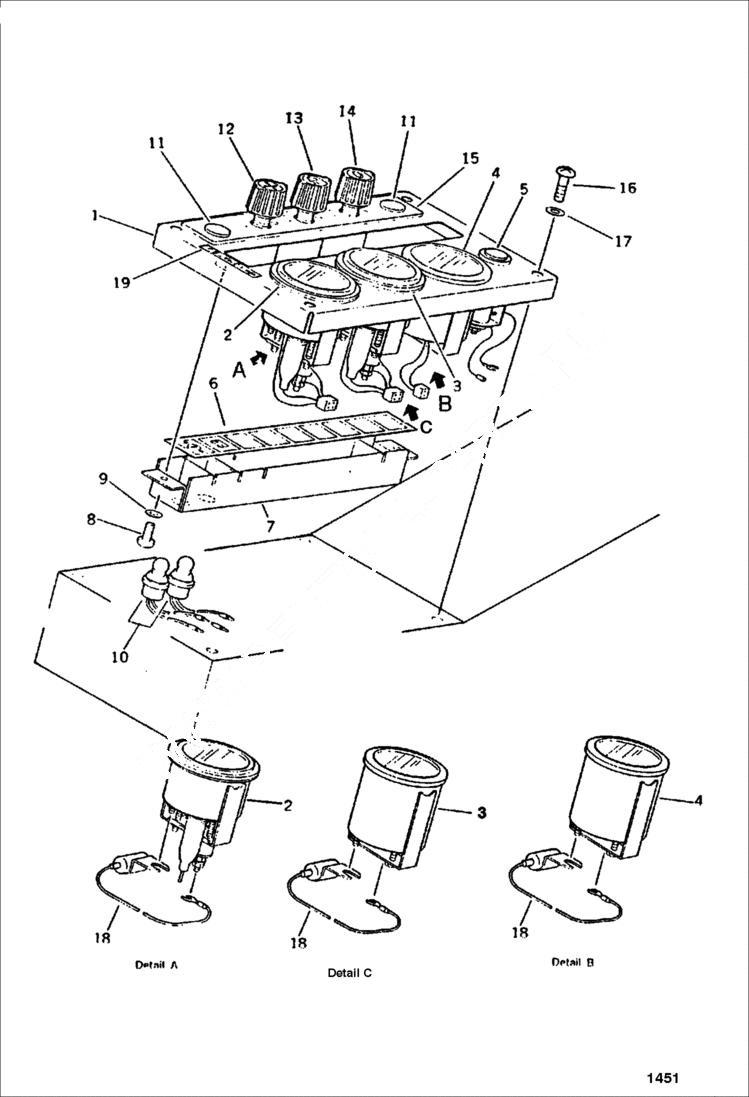

Запчасти Bobcat 130 INSTRUMENT PANEL 1/3 (PC60, PC60L) ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6639275

PANEL

2

6637884

GAUGE water temp - Komatsu S/N 20501-23219

2

GAUGE water temperature - Komatsu S/N 23220 & Abv. - Was 20X-06-22180

3

6639405

GAUGE fuel level - Komatsu S/N 20501-23219

3

GAUGE fuel level - Komatsu S/N 23220 & Abv. - Was 20X-06-22220

3

6639253

CONDENSER Komatsu S/N 23220 & Abv.

4

6637733

GAUGE, SE service meter

5

6639938

HEATER SI signal

6

6639276

SHIELD

7

6639675

BRACKET

8

6637024

SCREW

9

6637143

WASHER

10

6639885

LAMP ASSY

11

6637754

CAP

12

6639264

SWITCH heater

13

6639265

SWITCH lamp

14

6639266

SWITCH wiper

15

6639250

SHIELD

16

6639277

SCREW

17

6639278

WASHER

18

6639253

CONDENSER

19

6639251

MARK
