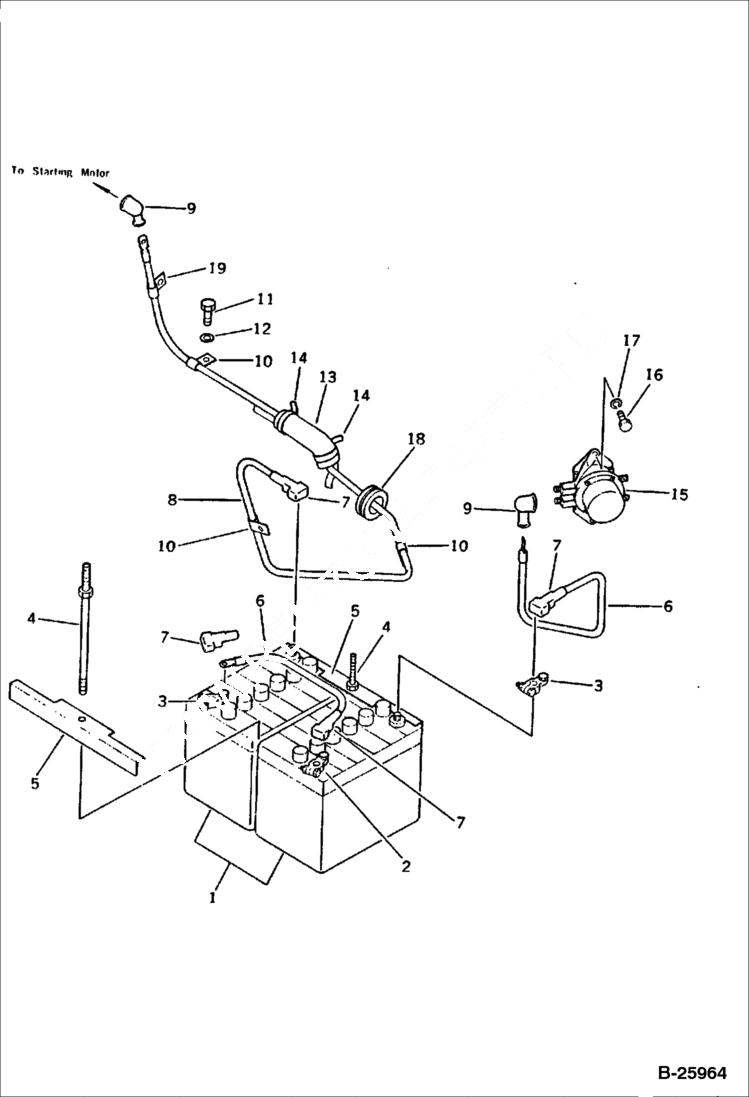

Запчасти Bobcat 130 BATTERY AND RELAY SWITCH ENGINE RELATED PARTS AND ELECTRICAL SYSTEM

1

6637679

BATTERY 12V, 65AH

1

6642177

BATTERY cold weather - except Japan(op) - USA & Russia standard

2

6640837

TERMINAL pos

3

6640838

TERMINAL neg

4

6639665

BOLT

5

6639666

CLAMP

6

6639668

WIRE

7

6637711

CAP

8

6639667

WIRE

9

6637710

CAP

10

6637689

CLIP

11

6636965

BOLT

12

6637157

WASHER

13

6639150

COVER

14

6637681

BAND

15

6637721

SWITCH battery relay

16

6636957

BOLT

17

6637134

WASHER

18

6637703

GROMMET

19

6637688

CLIP
