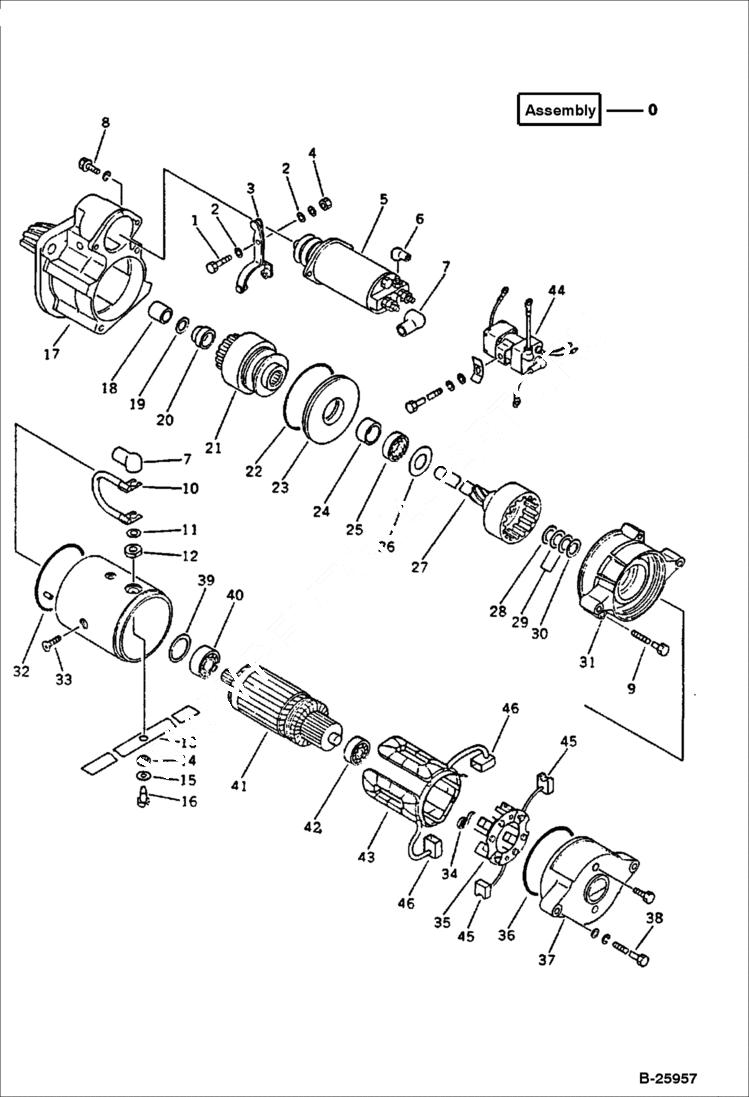

Запчасти Bobcat 130 STARTING MOTOR (2.8 KW) ELECTRICAL SYSTEM

0

6639933

MOTOR, ST 2.8KW - Ref. 1-46

1

6641601

PIN

2

6641592

SEAL

3

6641607

LEVER ASS

4

6641600

NUT

5

6636178

SWITCH AS

6

6636184

CAP

7

6636185

CAP

8

6641562

BOLT

9

6641591

BOLT

10

6641566

WIRE

11

6641635

WASHER

12

6641616

BUSHING

13

6641618

SHEET seat - insulate

14

6641619

BUSHING

15

6641617

SHEET

16

6641611

RIVET

17

6641606

BRACKET A front - W/ Ref. 18

18

6641637

METAL

19

6641598

RING

20

6641604

STOPPER

21

6641564

CLUTCH AS over running

22

6636183

O-RING

23

6641567

BRACKET A center - W/ Ref. 24

24

6641636

METAL

25

6636181

SEAL, OIL

26

6641599

WASHER

27

6641603

SHAFT

28

6641612

WASHER

29

6641613

WASHER

30

6641615

WASHER

31

6641608

BRACKET center

32

6636182

O-RING

33

6641590

SCREW

34

6636188

SPRING, B

35

6641565

BRUSH HOL

36

6636182

O-RING

37

6641609

BRACKET rear

38

6641610

BOLT

39

6641614

WASHER

40

6641595

BEARING

41

6641602

ARMATURE

42

6641594

BEARING,

43

6641605

COIL, FIE

44

6641568

SWITCH,AS

45

6636186

BRUSH

46

6636187

BRUSH
