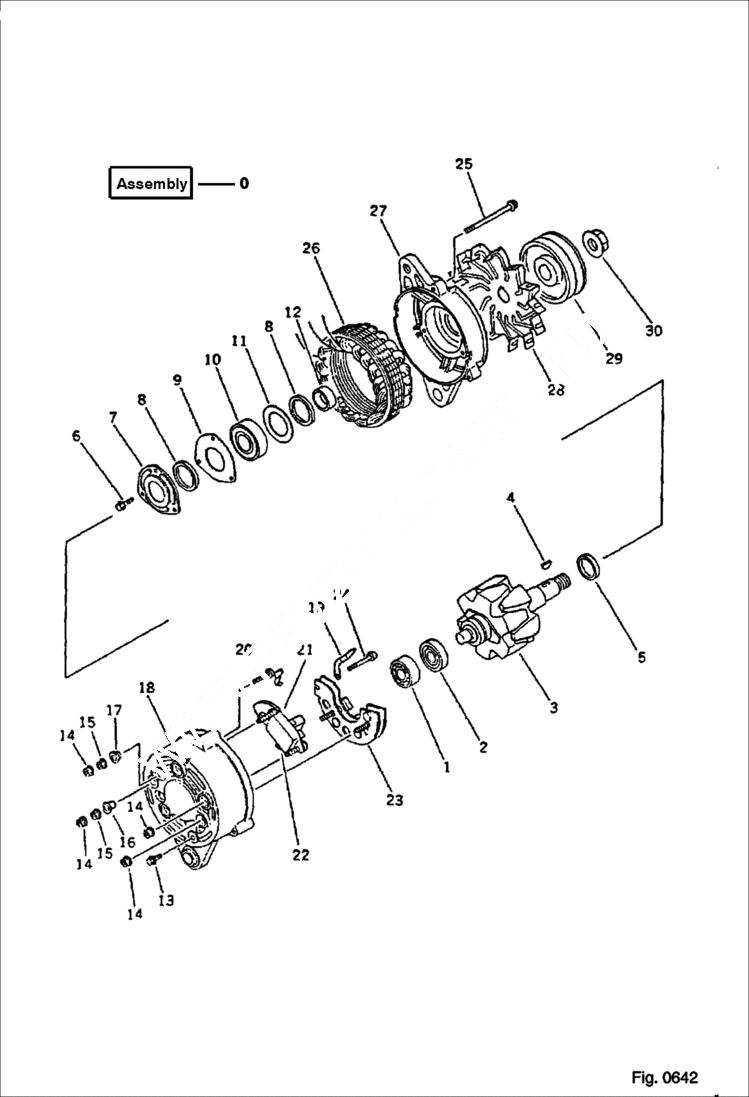

Запчасти Bobcat 130 ALTERNATOR (25A) (EXCEPT JAPAN) ELECTRICAL SYSTEM

0

6639940

ALTERNATO Ref. 1-30

1

6636180

BEARING

2

6641630

RETAINER

3

6641570

ROTOR ASY

4

6641593

KEY

5

6641588

COLLAR

6

6641581

BOLT

7

6641589

RETAINER

8

6636191

PACKING

9

6641629

RETAINER

10

6636179

BEARING

11

6641628

RETAINER

12

6641624

COLLAR

13

6641583

BOLT

14

6641586

NUT

15

6641587

NUT

16

6636190

BUSHING

17

6636177

BUSHING

18

6641576

BRACKET A

19

6641580

BAR

20

6641579

TERMINAL

21

6641639

REGULATOR Includes Ref. 22

22

6636189

RETAINER, brush assembly

23

RECTIFIER ASSY Was KD0-33730-2271

24

6641584

BOLT

25

6641582

BOLT

26

6641571

START.ASY

27

6641573

BRACKET

28

6641620

FAN

29

PULLEY Was KD1-35411-0030

30

6641585

NUT
