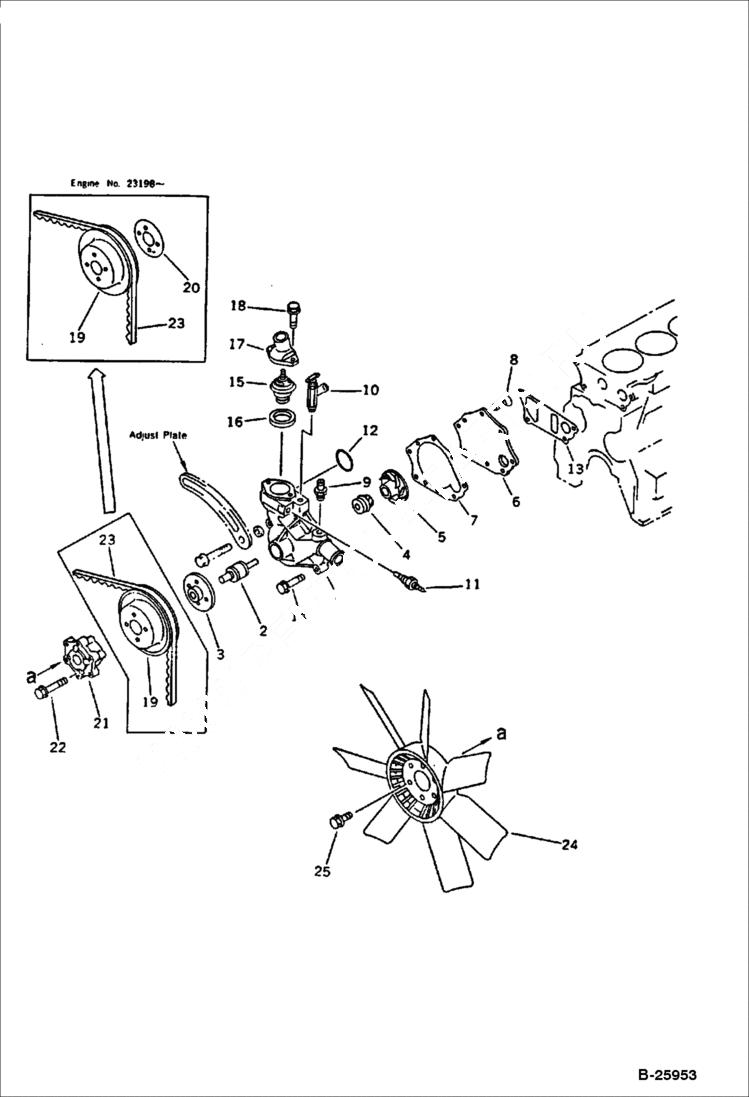

Запчасти Bobcat 130 WATER PUMP AND COOLING FAN COOLING SYSTEM

1

WATER PUMP ASSY Was 6204-61-1101

2

6640197

SHAFT

3

6640157

BOSS

4

6667472

SEAL

5

6640156

IMPELLER

6

6640154

COVER

7

6640155

GASKET

8

6637048

SCREW

9

6639867

NIPPLE

10

6639238

VALVE

11

6637728

SENDER UN sensor - thermo

12

6637359

O-RING

13

6640198

GASKET

14

6637085

BOLT

15

6639929

THERMOSTA

16

6639956

GASKET

17

6640049

CONNECTOR water outlet - Komatsu S/N 15548-17491

17

6640050

CONNECTOR water outlet - Komatsu S/N 17492 & Abv.

18

6637082

BOLT

19

6646448

PULLEY non hardening

20

PLATE Komatsu S/N 23198 & Abv. - Was 6204-61-3510

21

6640161

SHIM Komatsu S/N 15548-20588

21

6643187

SPACER Komatsu S/N 20589 & Abv.

22

6637087

BOLT

23

6637243

BELT, V

24

6639930

FAN

25

6637092

BOLT
