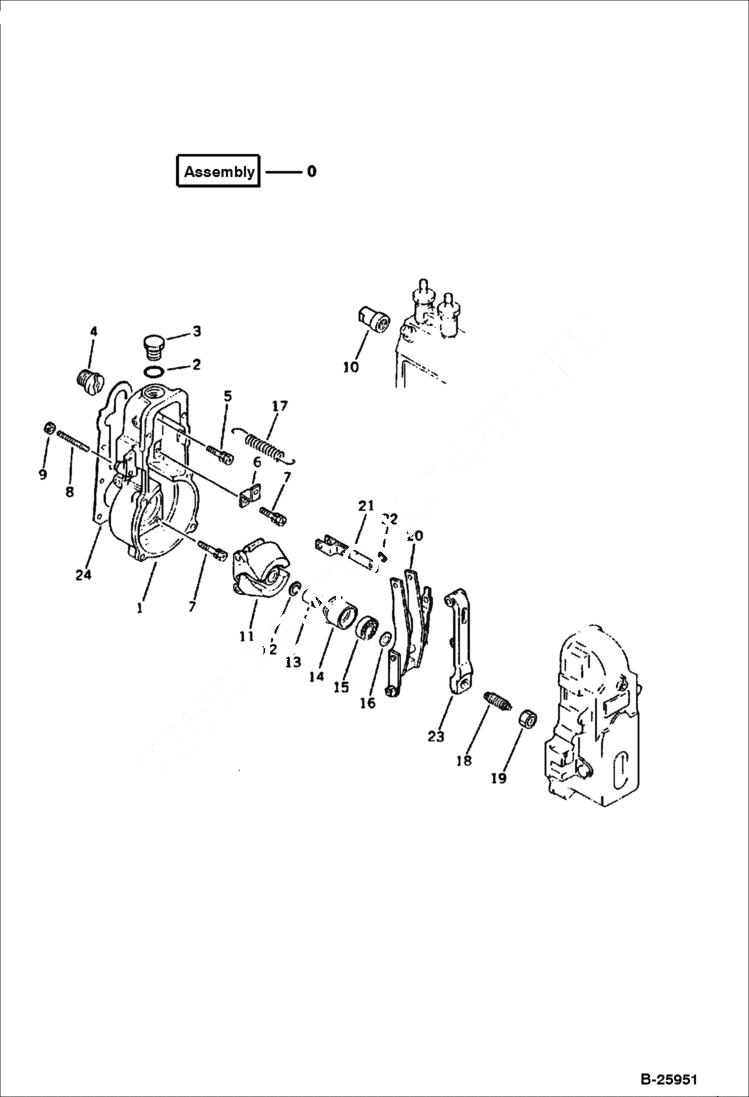

Запчасти Bobcat 130 FUEL INJECTION PUMP (GOVERNOR) (1 of 2) FUEL SYSTEM

0

6640168

PUMP See Illustration FUEL INJECTION PUMP/ B25950 See Illustration FUEL INJECTION PUMP/ B25952 See Illustration FUEL INJECTION PUMP/ 0462 Includes All Parts In ILL. B25950, B25951, 0462, B25952 - Was

0

6646143

GOV. ASSY See Illustration FUEL INJECTION PUMP/ 0462 Includes All Parts In ILL. B25951, 0462

1

6641523

HOUSING

2

6641465

O-RING

3

6641525

ADAPTER plug

4

6641524

PLUG adapter

5

6641441

BOLT

6

6641550

SPRING plate

7

6641439

BOLT

8

6641526

BOLT

9

6641528

NUT

10

6641554

CAP

11

6641534

WEIGHT

12

6641456

WASHER

13

6641454

NUT

14

6641535

SLEEVE

15

6641470

BEARING

16

SHIM, 0.20MM Was DK029311-0010

16

SHIM, 0.30MM Was DK029311-0180

16

SHIM, 0.40MM Was DK029311-0190

16

SHIM, 0.50MM Was DK139410-0000

16

SHIM, 1.00MM Was DK029311-0210

16

SHIM, 1.50MM Was DK139410-0100

17

6641537

SPRING

18

SPRING Was DK154177-2720

19

6641453

NUT

20

6641543

LEVER

21

6641546

LINK

22

6641437

RING

23

6641547

LEVER

24

6641551

GASKET
