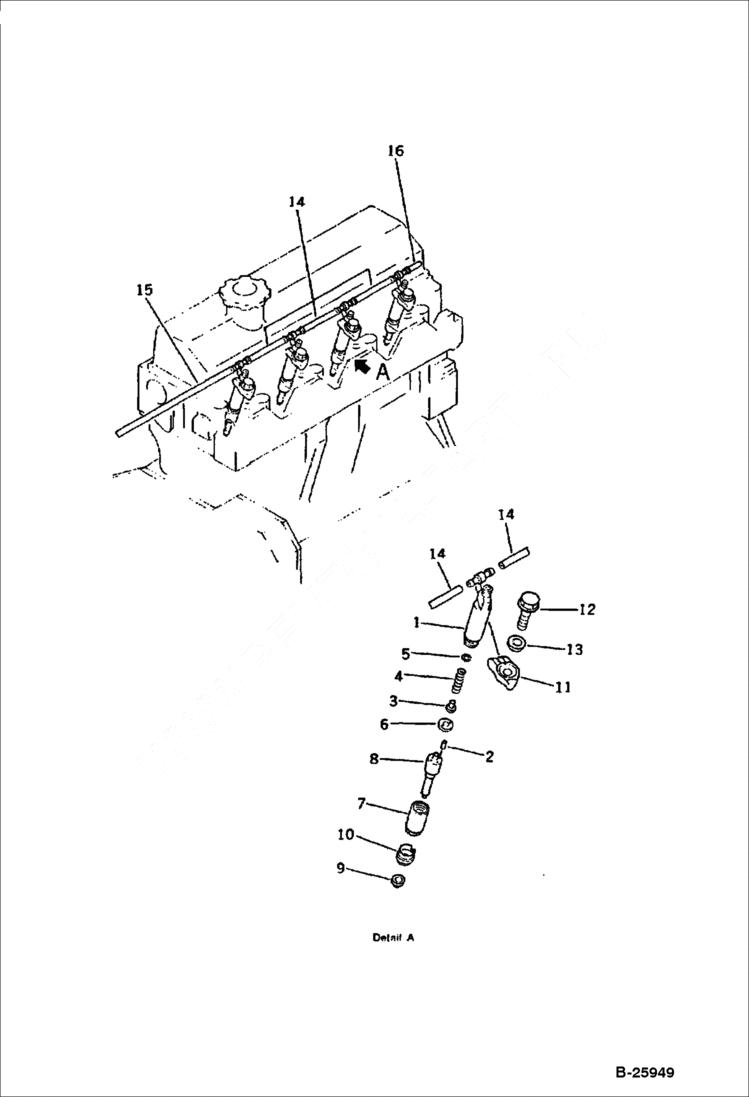

Запчасти Bobcat 130 FUEL NOZZLE AND SPILL PIPE FUEL SYSTEM

1

6640210

RETAINER

1

6640211

RETAINER

2

6641502

PIN

3

6641503

SEAT

4

6641505

SPRING

5

6646144

SHIM 0.10 mm

5

SHIM, 0.20MM Was DK150534-3700

5

SHIM, 0.30MM Was DK150534-3800

5

SHIM, 0.40MM Was DK150534-3900

5

SHIM, 0.50MM Was DK150534-4000

5

SHIM, 0.52MM Was DK150534-4100

5

SHIM, 0.54MM Was DK150534-4200

5

SHIM, 0.56MM Was DK150534-4300

5

SHIM, 0.58MM Was DK150534-4400

6

6641504

SPACER

7

6641506

NUT

8

6640212

NOZZLE

9

6640042

GASKET

10

6640041

SEAL

11

6640039

RETAINER

12

6637071

BOLT

13

6640040

WASHER

14

6637612

HOSE

15

6645892

TUBE, SPILL

16

6640179

CAP
