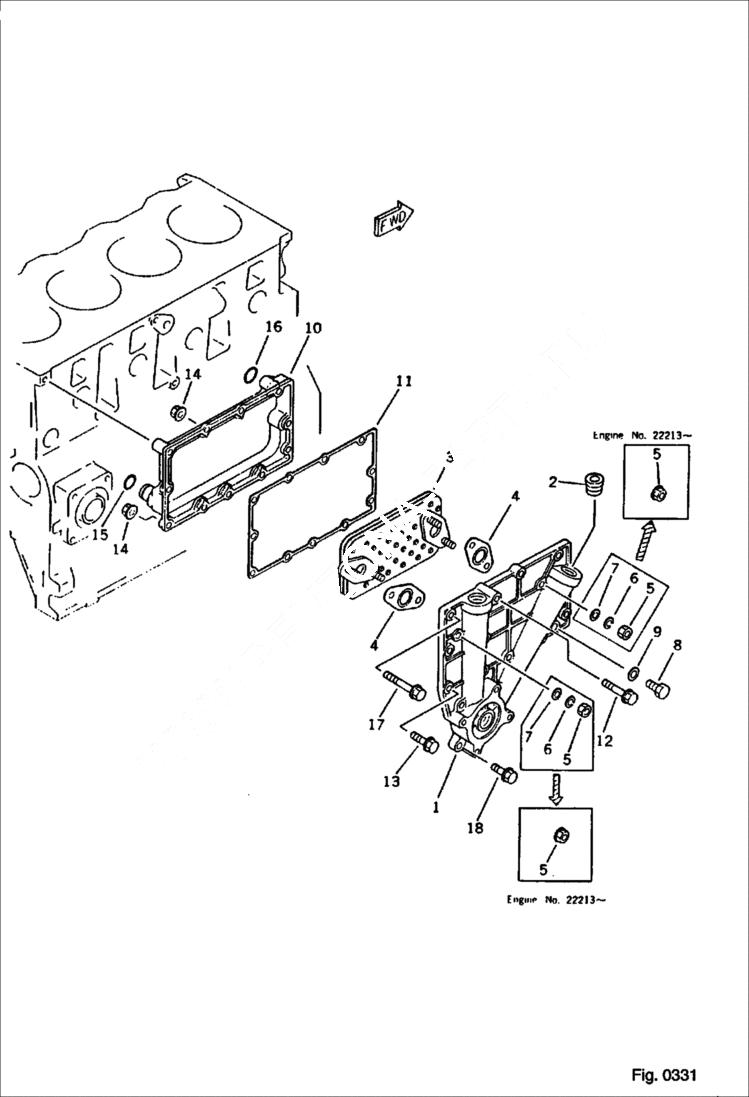

Запчасти Bobcat 130 LUBRICATING OIL COOLER (EXCEPT JAPAN) LUBRICATING OIL SYSTEM

1

6640163

COOLER, O

1

6640164

COVER

2

6637451

PLUG Komatsu S/N 15548-22212

2

PLUG Komatsu S/N 22213 & Abv. - Was 6204-61-5170

3

6639931

ELEMENT

4

6640167

GASKET

5

6642032

NUT Komatsu S/N 15548-22212

5

6637116

NUT Komatsu S/N 22213 & Abv.

6

6637134

WASHER Komatsu S/N 15548-22212

7

6637146

WASHER Komatsu S/N 15548-22212

8

6639923

PLUG

9

6637420

SEAL

10

6640165

HOUSING

11

6640166

GASKET

12

6637087

BOLT

13

6637084

BOLT

14

NUT Was 01584-20806

15

6637340

O-RING

16

6637341

O-RING

17

6637088

BOLT

18

6637083

BOLT
