LUBRICATING OIL PUMP AND SUCTION PIPE

Запчасти Bobcat 130 LUBRICATING OIL PUMP AND SUCTION PIPE LUBRICATING OIL SYSTEM

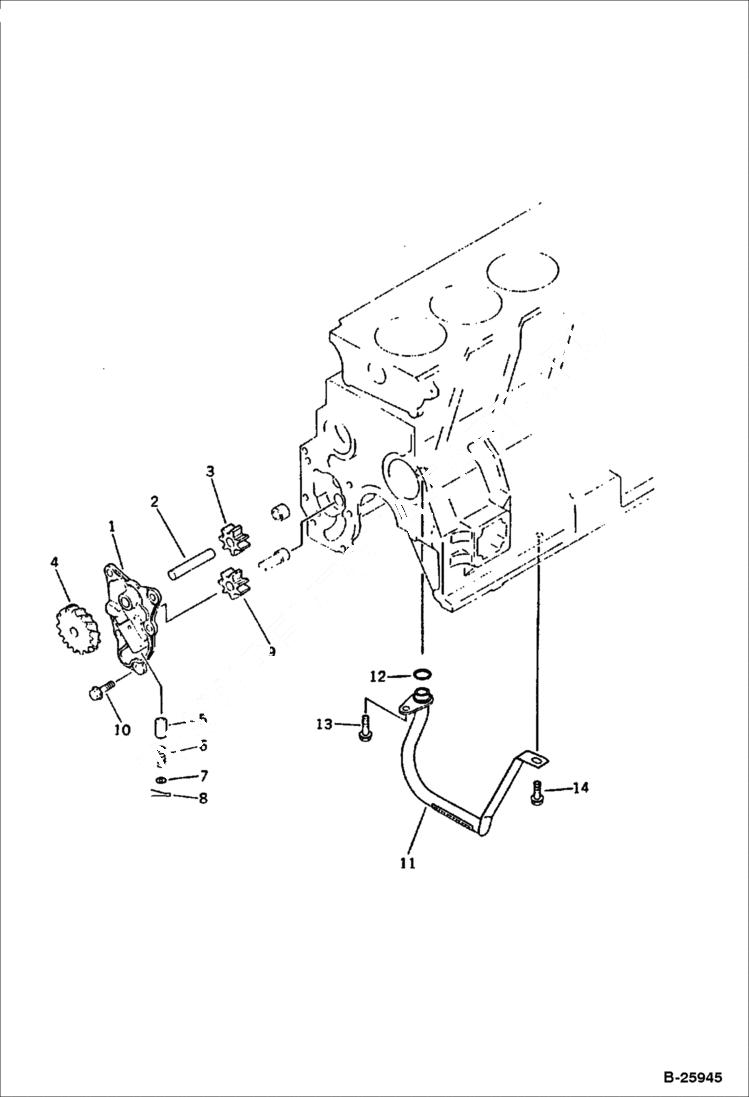

Схема запчастей Bobcat 130 - LUBRICATING OIL PUMP AND SUCTION PIPE LUBRICATING OIL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6640137

PUMP, OIL Ref.1-9 - Was 6640136 - A

2

6640143

SHAFT ASSY

3

6640144

GEAR

4

6640196

GEAR

5

6640139

VALVE

6

6640140

SPRING

7

6640141

WASHER

8

6640142

PIN, COTTER

9

6640146

GEAR

10

6637081

BOLT

11

6640150

TUBE

12

6640151

O-RING K2

13

6637081

BOLT

14

6637079

BOLT
