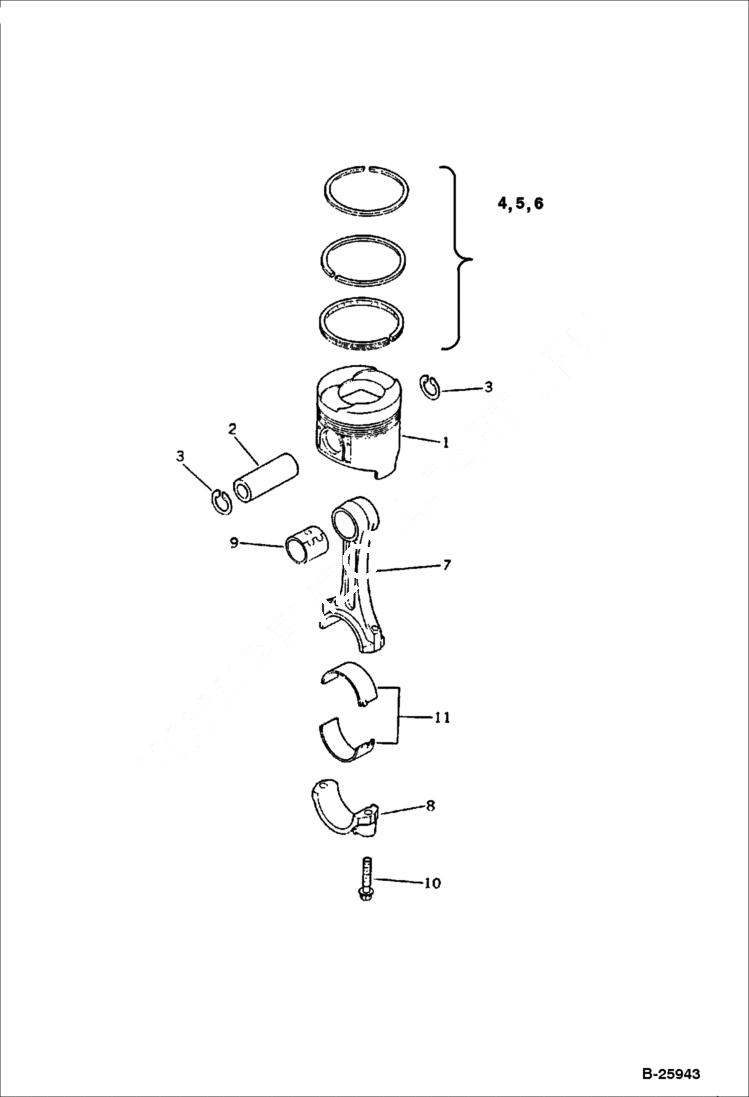

Запчасти Bobcat 130 PISTON AND CONNECTING ROD CYLINDER BLOCK

1

6640094

PISTON (L) - Std.

1

6640095

PISTON (S) - Std.

1

6643179

PISTON (L) - Oversize 0.25mm

1

6643180

PISTON (S) - Oversize 0.25mm

1

6643172

PISTON (L) - Oversize 0.50mm

1

6643173

PISTON (S) - Oversize 0.50mm

2

6640100

PIN

3

6637230

RING, SNAP

4

6640096

RING ASSY Per Cylinder Set - Std.

5

6643181

RING ASSY Per Cylinder Set - Oversize 0.25mm

6

6643174

RING ASSY Per Cylinder Set - Oversize 0.50mm

7

6640101

ROD, CONN W/Ref. 8-10

8

CAP Order Ref. 7

9

6640104

BUSHING

10

6640105

BOLT

11

6640106

METAL ASY Std.

11

6643184

METAL ASY Undersize 0.25mm

11

6643177

METAL ASSY Undersize 0.50mm

11

6643170

METAL ASY Undersize 0.75mm

11

6643168

METAL ASSY Undersize 1.00mm
