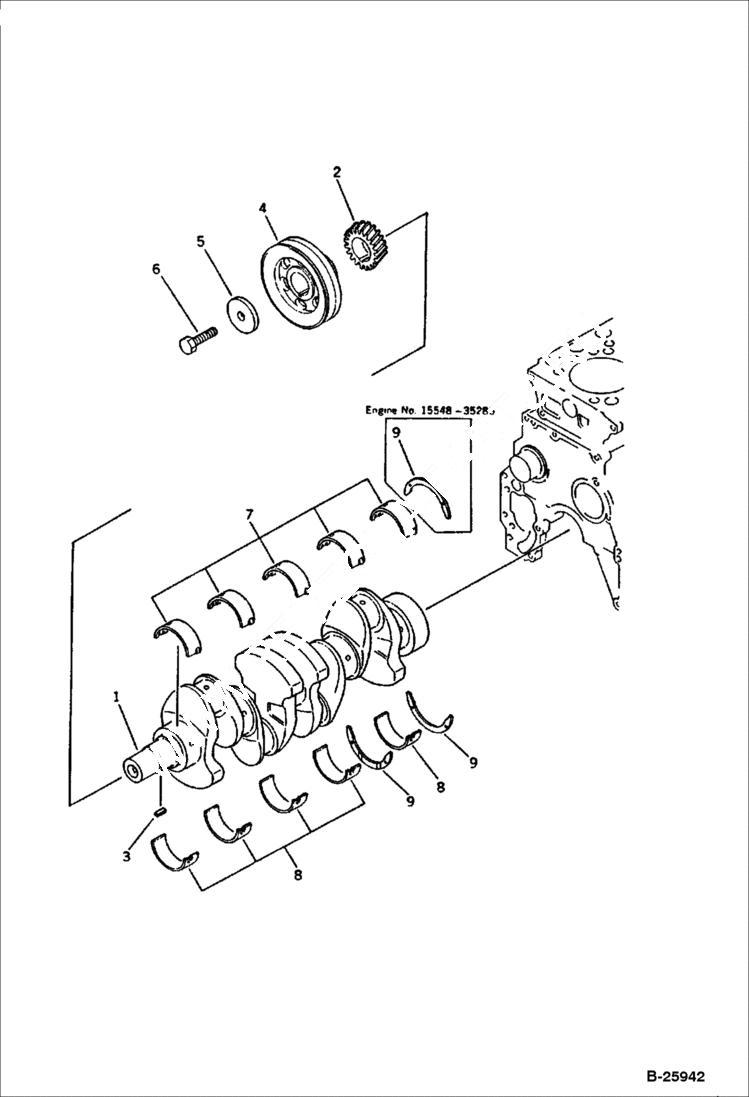

Запчасти Bobcat 130 CRANKSHAFT CYLINDER BLOCK

1

6640090

CRANKSHAFT

2

6640091

GEAR

3

6640191

KEY

4

6643167

PULLEY

5

6640093

WASHER

6

6639945

BOLT

7

6640082

METAL ASSY Std. - W/Ref. 8

7

6643162

METAL ASY Undersize 0.25mm - W/Ref. 8

7

6643157

METAL ASY Undersize 0.50mm - W/Ref. 8

7

6643152

METAL ASSY Undersize 0.75mm - W/Ref. 8

7

6643147

METAL ASSY Undersize 1.00mm - W/Ref. 8

8

METAL, LOWER NSS - Order Ref. 7

9

6640085

METAL ASY Std. - Komatsu S/N 15548-35286

9

THRUST METAL ASSY Std. - Komatsu S/N 35287 & Abv. - Was 6204-21-8600

9

6643165

METAL ASSY Oversize 0.25mm - Komatsu S/N 15548-35286

9

6657022

METAL ASY Oversize 0.25mm - Komatsu S/N 35287 & Abv.

9

6643160

METAL ASSY Oversize 0.50mm - Komatsu S/N 15548-35286

9

THRUST METAL ASSY Oversize 0.50mm - Komatsu S/N 35287 & Abv. - Was 6204-28-8600

9

6643155

METAL ASSY Oversize 0.75mm - Komatsu S/N 15548-35286

9

THRUST METAL ASSY Oversize 0.75mm - Komatsu S/N 35287 & Abv. - Was 6204-27-8600

9

6643150

METAL ASSY Oversize 1.00mm - Komatsu S/N 15548-35286

9

THRUST METAL ASSY Oversize 1.00mm - Komatsu S/N 35287 & Abv. - Was 6204-26-8600
