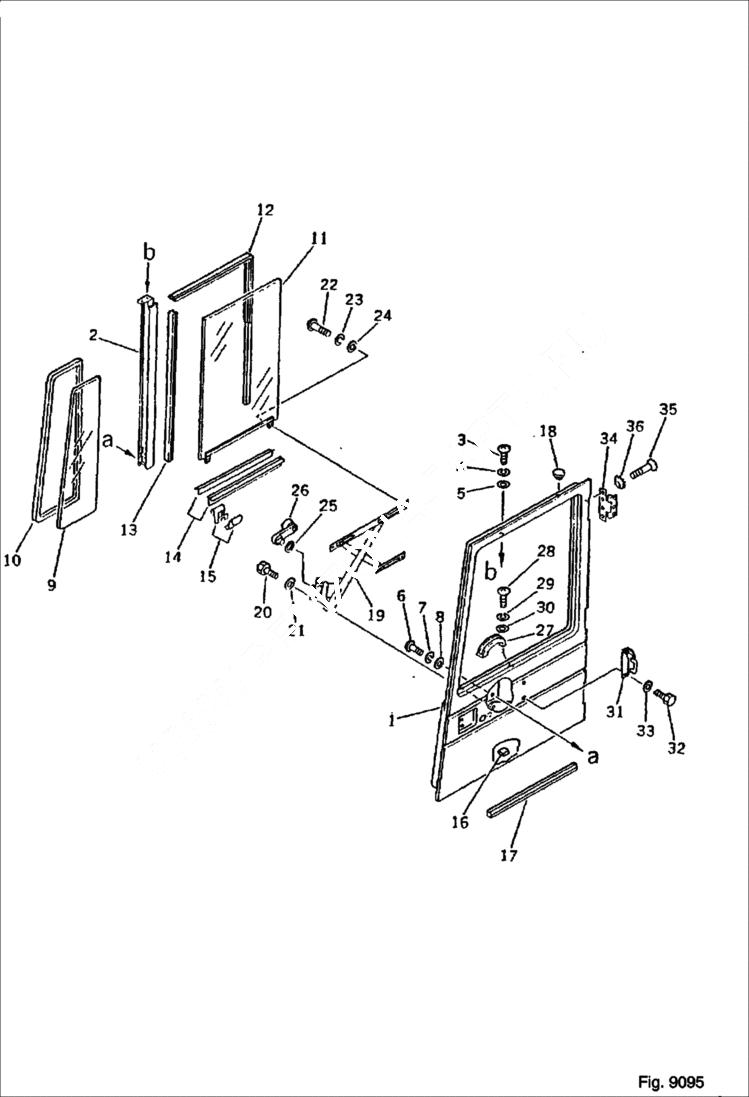

Запчасти Bobcat 130 OPERATORS CAB For USA - 5/6 MARK PLATE, TOOL AND KIT

1

OPERATOR'S CAB ASS'Y See Illustration OPERATOR'S CAB/ 9091 See Illustration OPERATOR'S CAB/ 9092 See Illustration OPERATOR'S CAB/ 9096 See Illustration OPERATOR'S CAB/ 9094 See Illustration OPERATOR'S

1

DOOR ASS'Y See Illustration OPERATOR'S CAB/ 9096 Was 201-54-00520

1

6639295

DOOR

2

6639317

BAR

3

6637026

SCREW

4

6637125

WASHER

5

6637143

WASHER

6

6637038

SCREW

7

6637133

WASHER

8

6637145

WASHER

9

6639301

GLASS

10

6639311

STRIP, WE weather

11

6639340

GLASS ASY

12

6639309

SEAL

13

6639339

SEAL

14

6639310

SEAL

15

6639366

CLIP

16

6639330

STOPPER

17

6639337

SHEET

18

6639312

CAP

19

6639314

REGULATOR

20

6636952

BOLT

21

6637155

WASHER

22

6637037

SCREW

23

6637133

WASHER

24

6637145

WASHER

25

6639910

ESCUTCHEO washer

26

6639331

HANDLE

27

6639338

HANDLE

28

6637038

SCREW

29

6637133

WASHER

30

6637145

WASHER

31

6639364

BRACKET

32

6636958

BOLT

33

6637156

WASHER

34

6639368

HINGE ASSY

35

6637045

SCREW

36

6639367

WASHER
