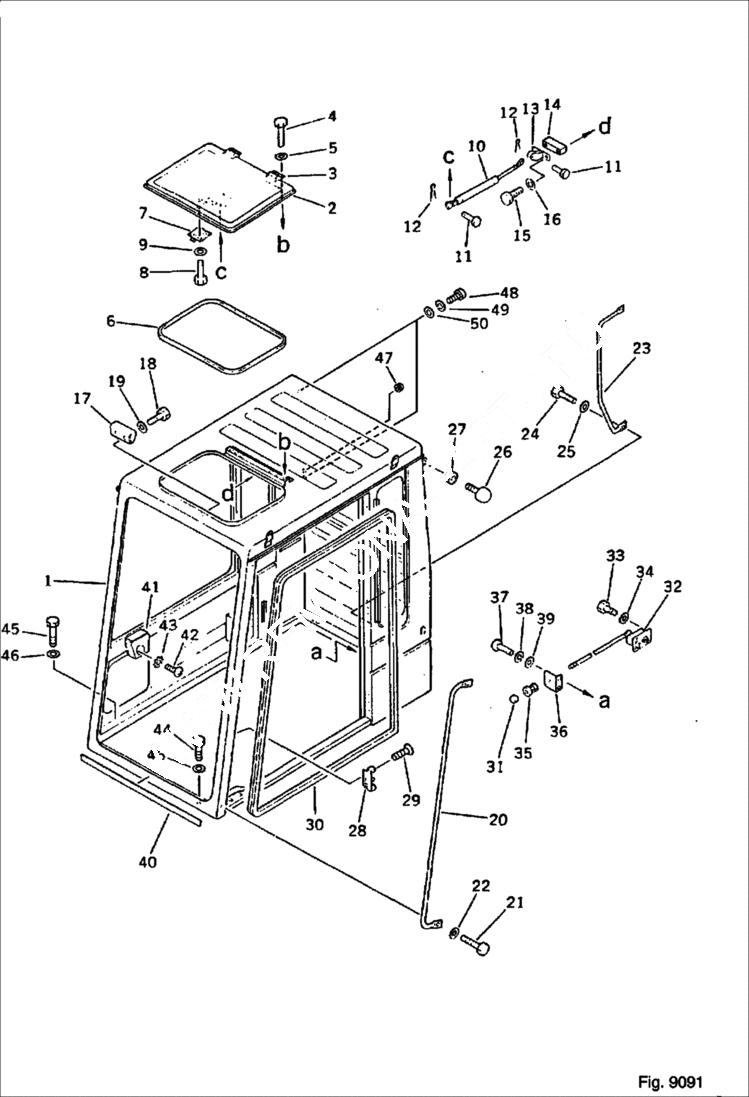

Запчасти Bobcat 130 OPERATORS CAB For USA - 1/6 MARK PLATE, TOOL AND KIT

1

OPERATOR'S CAB ASS'Y See Illustration OPERATOR'S CAB/ 9092 See Illustration OPERATOR'S CAB/ 9093 See Illustration OPERATOR'S CAB/ 9096 See Illustration OPERATOR'S CAB/ 9095 See Illustration OPERATOR'S

1

6639294

CAB

2

6639297

COVER

3

6643094

HINGE welded

4

6636952

BOLT

5

6637155

WASHER

6

6639307

PAD, TRIM

7

6639348

LOCK ASSY

8

6636953

BOLT

9

6637155

WASHER

10

6639291

SPRING

11

6637256

PIN

12

6637196

PIN, COTT

13

6639351

BRACKET

14

6639375

SEAT

15

6636955

BOLT

16

6637155

WASHER

17

6639352

BRACKET

18

6636953

BOLT

19

6637155

WASHER

20

6639353

GRIP

21

6636967

BOLT

22

6637157

WASHER

23

6639354

GRIP

24

6636967

BOLT

25

6637157

WASHER

26

6637761

STOPPER

27

6637109

NUT

28

6639320

STRIKER

29

6637044

SCREW

30

6639308

PAD, TRIM

31

6639373

KNOB

32

6639370

LOCK ASSY

33

6636954

BOLT

34

6637155

WASHER

35

6639372

GROMMET

36

6639371

BRACKET

37

6637040

SCREW

38

6637133

WASHER

39

6637145

WASHER

40

6639379

PLATE

41

6639077

ASHTRAY

42

6637063

SCREW

43

6637140

WASHER

44

6636984

BOLT

45

6636988

BOLT

46

6637158

WASHER

47

6637755

CAP

48

6637026

SCREW

49

6637125

WASHER

50

6637143

WASHER
