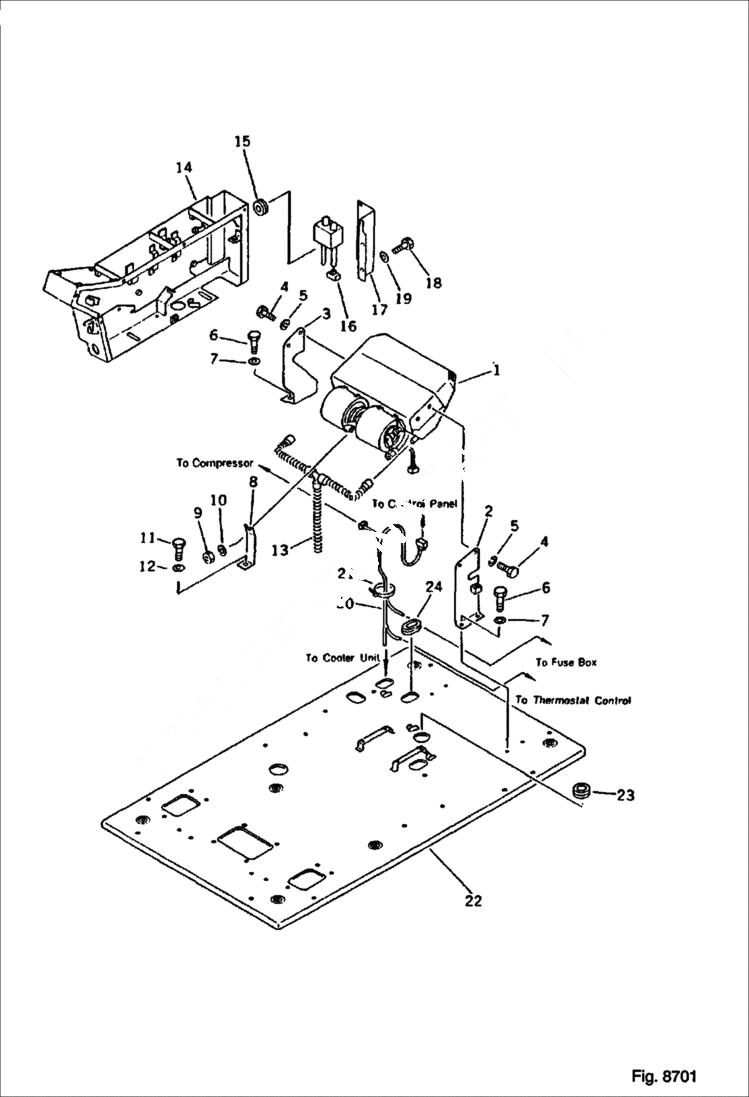

Запчасти Bobcat 130 CAR COOLER PIPING 1/2 (PC60) OPTIONAL PARTS

1

COOLING UNIT Diesel Kiki Part No. 509623-4180 - Was 205-981-5110

2

PLATE,LH Was 203-978-4211

3

PLATE,RH Was 203-978-4191

4

6636959

BOLT

5

6637134

WASHER

6

6636979

BOLT

7

6637158

WASHER

8

PLATE Was 203-978-4121

9

6642032

NUT

10

6637134

WASHER

11

6636979

BOLT

12

6637158

WASHER

13

DRAIN HOSE Modified from 205-981-5170 - Was 203-978-4380

14

BOX,RH Modified from 6639777 - Was 20X-978-2230

15

6637703

GROMMET

16

PANEL ASS'Y Diesel Kiki Part No. 509634-97CO - Was 205-981-5150

17

BRACKET Was 203-978-4271

18

6636957

BOLT

19

6637156

WASHER

20

WIRE ASS'Y Was 203-978-4261

21

6637682

BAND

22

FRAME, FLOOR Modified from 20X-54-24160 - Was 20X-978-2220

23

6637703

GROMMET

24

6637891

GROMMET
