REVOLVING FRAME UNDER COVER

Запчасти Bobcat 130 REVOLVING FRAME UNDER COVER OPTIONAL PARTS

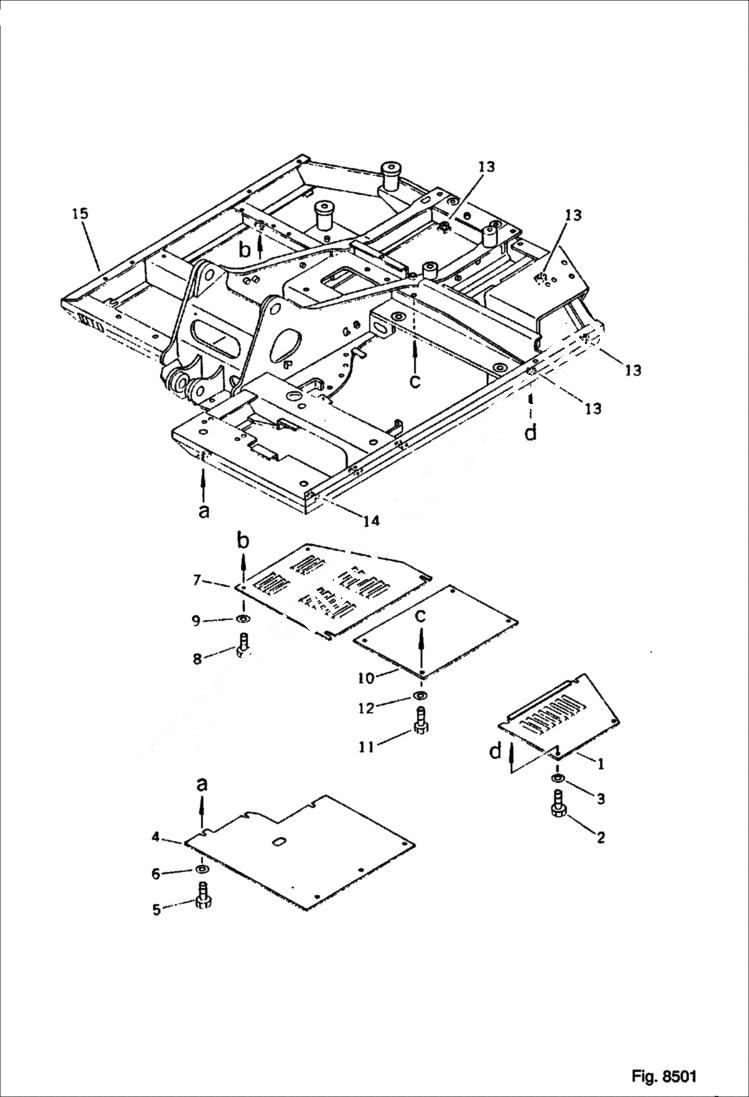

Схема запчастей Bobcat 130 - REVOLVING FRAME UNDER COVER OPTIONAL PARTS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

COVER Was 20X54-26550

2

6636966

BOLT

3

6637157

WASHER

4

COVER Was 20X-54-21640

5

6636966

BOLT

6

6637157

WASHER

7

COVER Was 20X-54-21650

8

6636966

BOLT

9

6637157

WASHER

10

COVER Was 20X-54-21660

11

6636966

BOLT

12

6637157

WASHER

13

FRAME, REVOLVING Was 201-46-51610

13

6637108

NUT

14

SEAT Was 203-46-41240

15

6639073

FRAME ASSY
