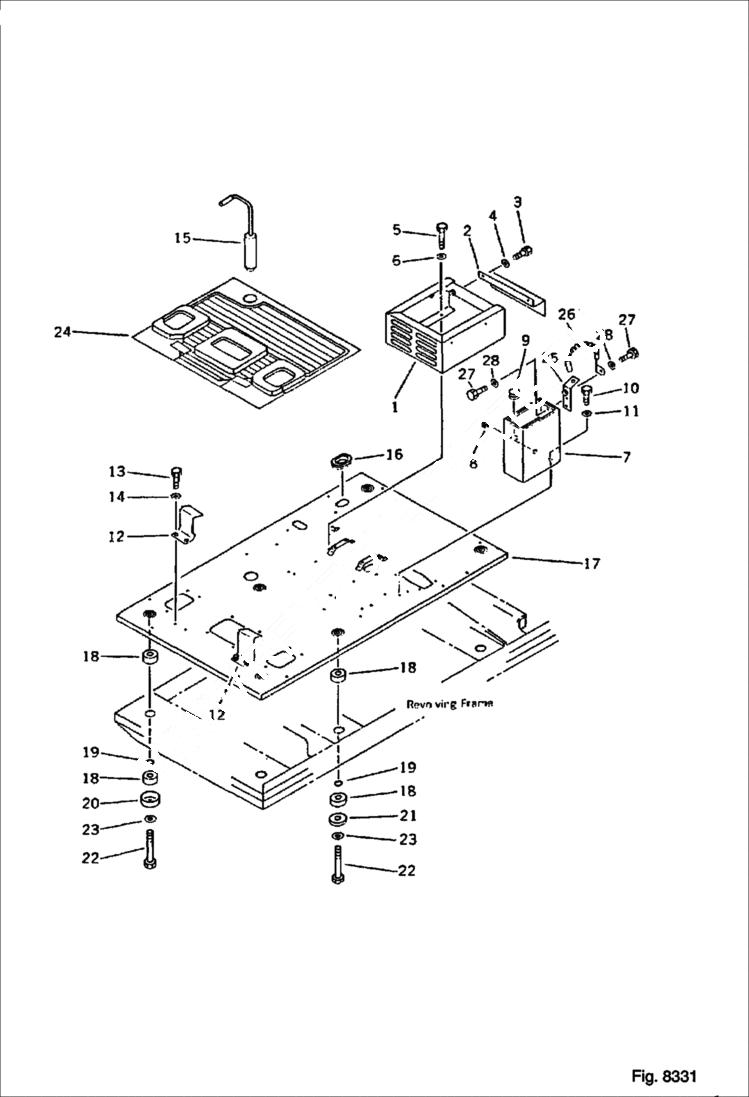

Запчасти Bobcat 130 FLOOR PLATE AND BOX For Front Blade OPTIONAL PARTS

1

6642998

BRACKET

2

6643111

COVER

3

6636965

BOLT

4

6637157

WASHER

5

6636980

BOLT

6

6637158

WASHER

7

BOX Was 201-910-5730

8

6637700

GROMMET

9

6637758

CAP

10

6636966

BOLT

11

6637157

WASHER

12

BRACKET Was 203-43-42573

12

6643052

BRACKET Komatsu S/N 20501-22281

13

6636967

BOLT

14

6637157

WASHER

15

6643059

PIN

16

6637891

GROMMET

17

FLOOR FRAME Was 201-910-5710

18

6643056

CUSHION

19

6637354

O-RING

20

6643039

COLLAR

21

6643078

PLATE

22

BOLT Was 01010-51675

23

6637160

WASHER

24

6643058

FLOOR MAT

25

BRACKET Was 201-910-5741

26

6646605

LOCK

27

6636966

BOLT

28

6637157

WASHER
