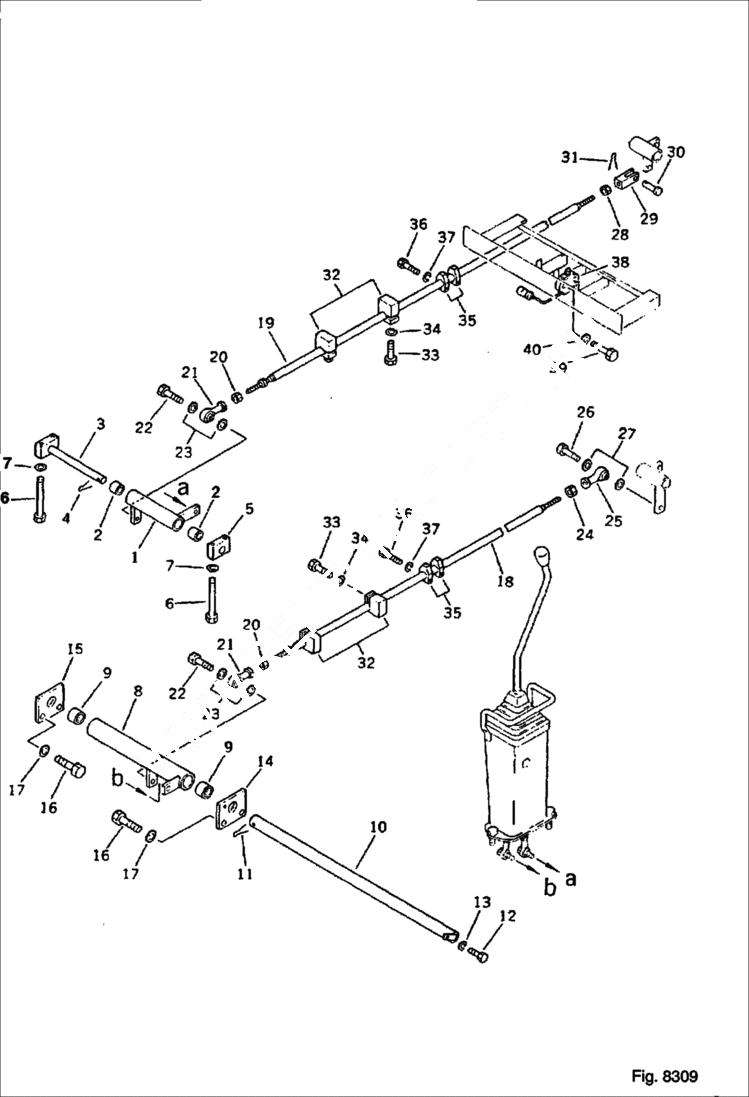

Запчасти Bobcat 130 WORK EQUIPMENT CONTROL LINKAGE For Arm, Swing 1/2 For Front Blade OPTIONAL PARTS

1

6643053

LEVER

2

6637894

BEARING

3

6643054

SHAFT

4

6637201

PIN, COTT

5

6639171

BLOCK

6

6636974

BOLT

7

6637157

WASHER

8

6642984

LEVER arm

9

6639287

BEARING - A

10

6639179

SHAFT

11

6637202

PIN, COTT

12

6636958

BOLT

13

6637134

WASHER

14

6639180

BRACKET

15

6639184

BRACKET

16

6636980

BOLT

17

6637158

WASHER

18

6639726

ROD

19

6639727

ROD

20

6637113

NUT

21

6637307

END

22

6636968

BOLT

23

6637157

WASHER

24

6637100

NUT LH thread

25

6637308

ROD END LH thread

26

6636968

BOLT

27

6637157

WASHER

28

6637100

NUT LH thread

29

6637271

YOKE

30

6637258

PIN

31

6637199

PIN, COTTER

32

6639188

SHIELD

33

6636968

BOLT

34

6637157

WASHER

35

6639723

SHIELD

36

6636960

BOLT

37

6637134

WASHER

38

6643112

SWITCH limit

39

6636969

BOLT

40

6637157

WASHER
