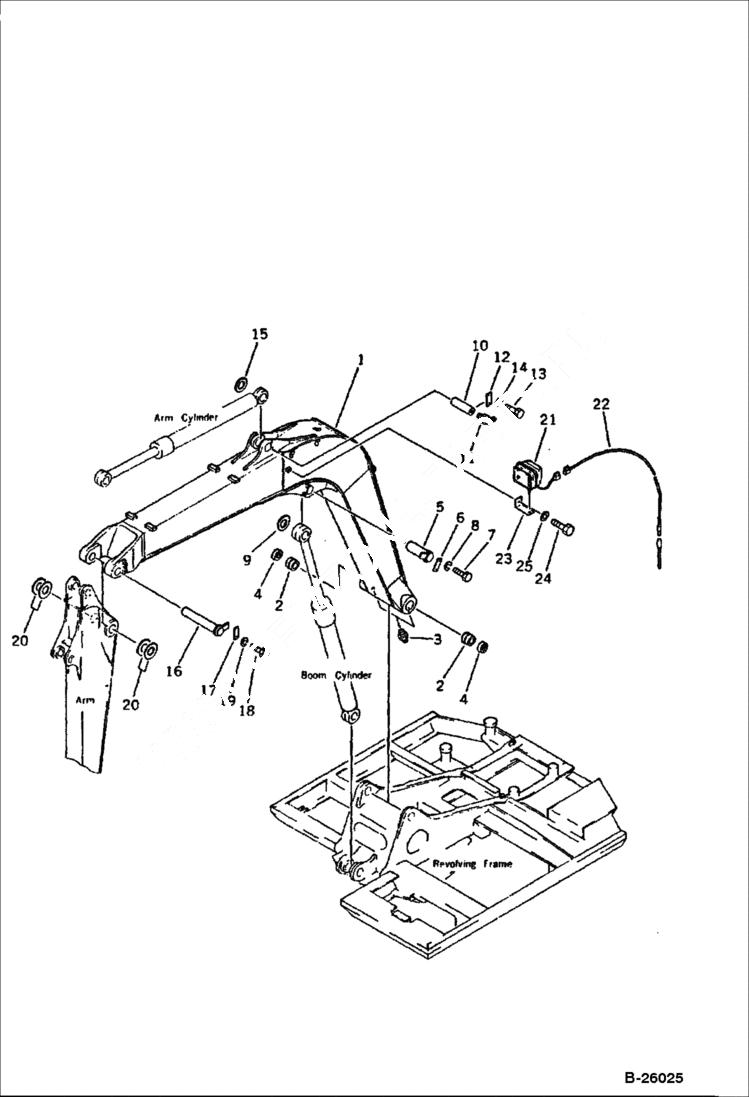

Запчасти Bobcat 130 BOOM WORK EQUIPMENT

1

6639115

BOOM ASSY Komatsu S/N 20501 & Abv

1

BOOM ASS'Y Komatsu S/N 20501-24642 - Was 201-70-00401

1

BOOM ASS'Y Komatsu S/N 24643 & Abv - Was 201-70-00402

1

6639122

BOOM

2

6639117

BUSHING

3

6637432

FITTING

4

6637537

SEAL, DUS

5

6639123

SHAFT

6

6639118

SHIELD

7

6636980

BOLT

8

6637136

WASHER

9

6639144

SHIM 1,00 mm

10

6639124

PIN

11

6637431

FITTING

12

6637242

LOCK

13

6636980

BOLT

14

6637136

WASHER

15

6639232

SHIM

16

6639843

SHAFT

17

6639118

SHIELD

18

6636980

BOLT

19

6637136

WASHER

20

6639234

SHIM 0,50 mm

20

6639142

SHIM 1,00 mm

21

6639889

LAMP

21

6639888

BULB

22

6639673

WIRE

23

6639152

BRACKET

24

6636991

BOLT

25

6637159

WASHER
