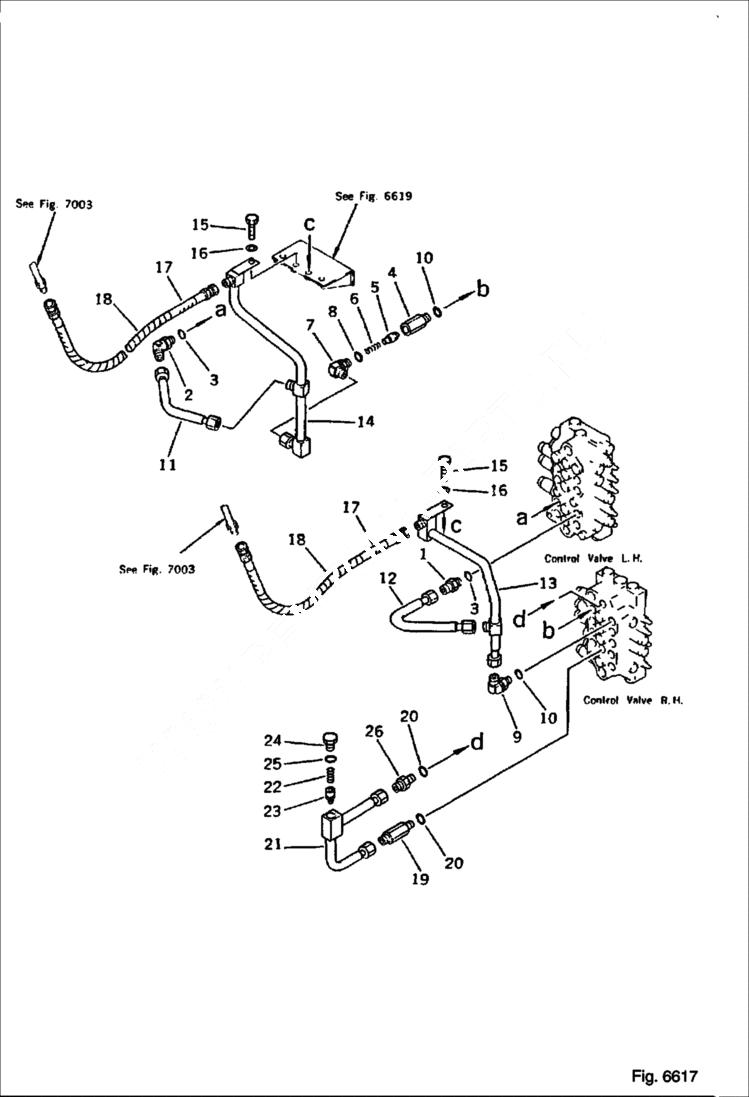

Запчасти Bobcat 130 HYDRAULIC PIPING Arm Cylinder Line HYDRAULIC SYSTEM

1

6637581

NIPPLE

2

6637591

ELBOW

3

6637417

O-RING

4

6639827

VALVE ASSY

4

6639831

HOUSING,

5

6639832

VALVE

6

6639212

SPRING

7

6639833

ELBOW

8

6637417

O-RING

9

6637588

ELBOW

10

6637417

O-RING

11

6639804

TUBE

12

6639803

TUBE

13

6639801

TUBE

14

6639802

TUBE

15

6636967

BOLT

16

6637157

WASHER

17

6637489

HOSE

18

6639219

COVER

19

6639223

NIPPLE

20

6637417

O-RING

21

6639821

TUBE

22

6637857

SPRING

23

6639822

VALVE

24

6639823

PLUG

25

6637417

O-RING

26

6639810

NIPPLE
