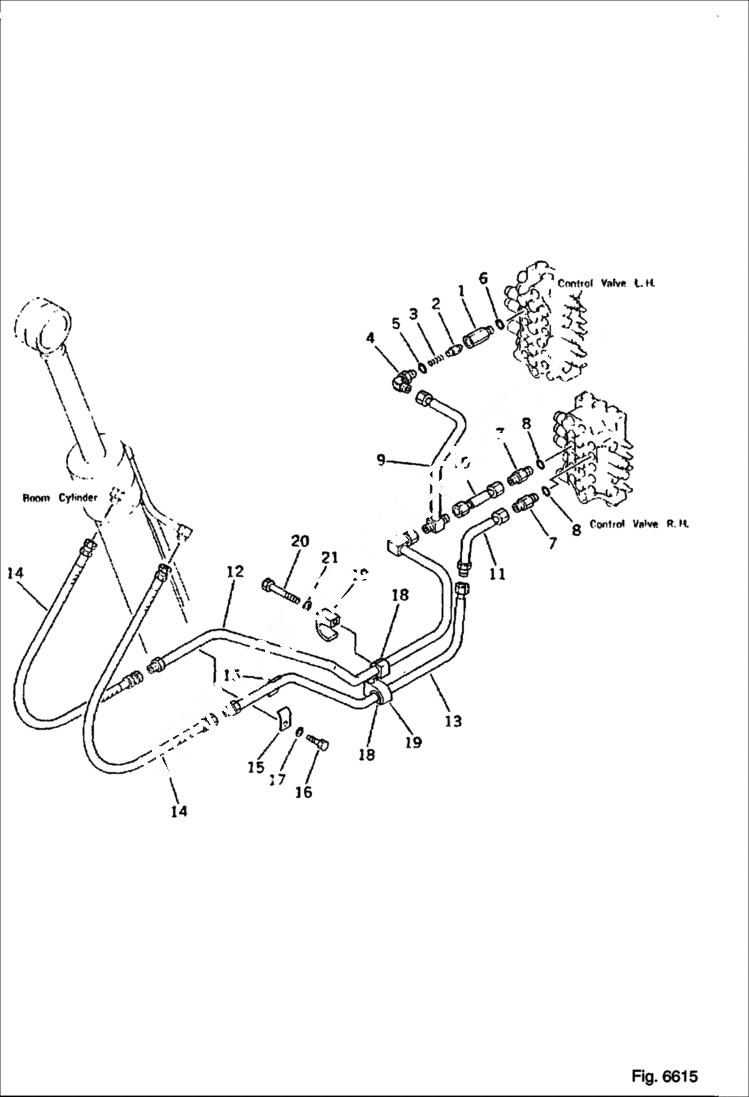

Запчасти Bobcat 130 HYDRAULIC PIPING Boom Cylinder Line HYDRAULIC SYSTEM

1

6639827

VALVE ASSY

1

6639831

HOUSING,

2

6639832

VALVE

3

6639212

SPRING

4

6639833

ELBOW

5

6637417

O-RING

6

6637417

O-RING

7

6639807

NIPPLE

8

6637410

O-RING

9

6639800

TUBE

10

6639824

TUBE

11

6639825

TUBE Komatsu S/N 20501-22289

11

6645610

TUBE Komatsu S/N 22290 & Abv

12

6639798

TUBE

13

6639799

TUBE Komatsu S/N 20501-22289

13

6645609

TUBE Komatsu S/N 22290 & Abv

14

6637488

HOSE

15

6639090

CLAMP

16

6636967

BOLT

17

6637157

WASHER

18

6639228

CUSHION

19

6639227

CLAMP

20

6636975

BOLT

21

6637157

WASHER
