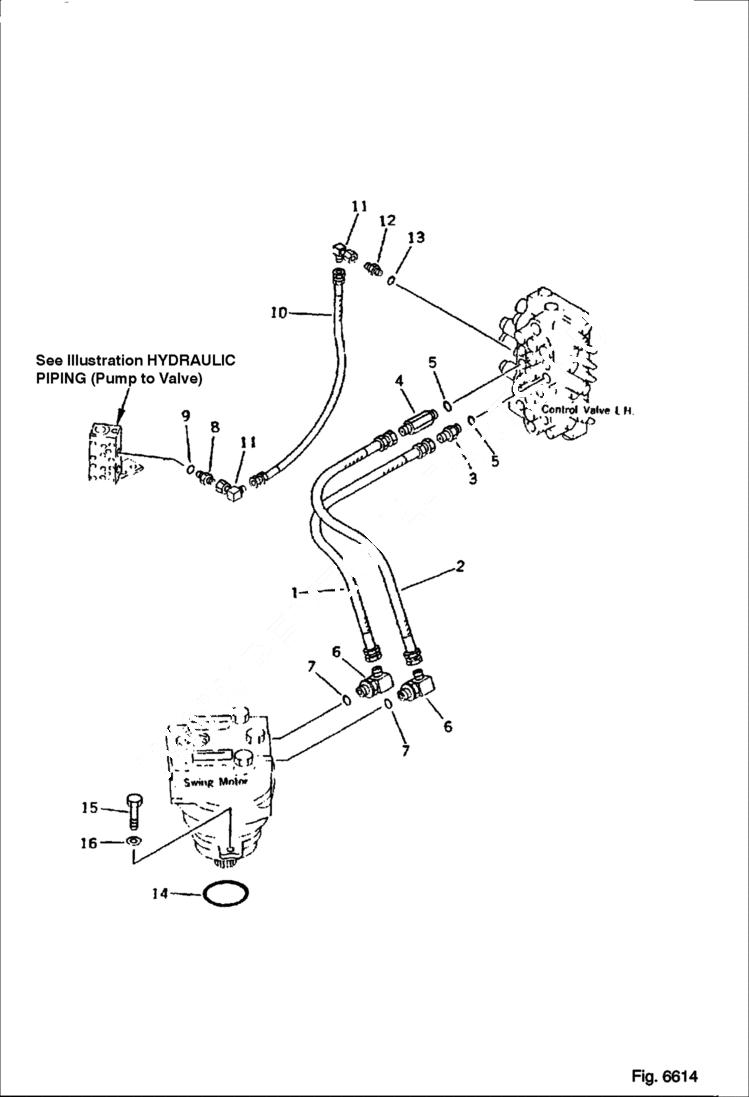

Запчасти Bobcat 130 HYDRAULIC PIPING Valve to/from Swing Motor Without Swing Mechanical Brake (except Japan) (except USA) HYDRAULIC SYSTEM

1

HOSE Was 07102-00405

2

HOSE Was 07102-00406

3

6637581

NIPPLE

4

6639223

NIPPLE

5

6637417

O-RING

6

6639887

ELBOW

7

6637418

O-RING

8

6637579

NIPPLE

9

6637409

O-RING

10

6639231

HOSE

11

6639819

ELBOW

12

6637579

NIPPLE

13

6637409

O-RING

14

6637348

O-RING

15

6636994

BOLT

16

6637159

WASHER
