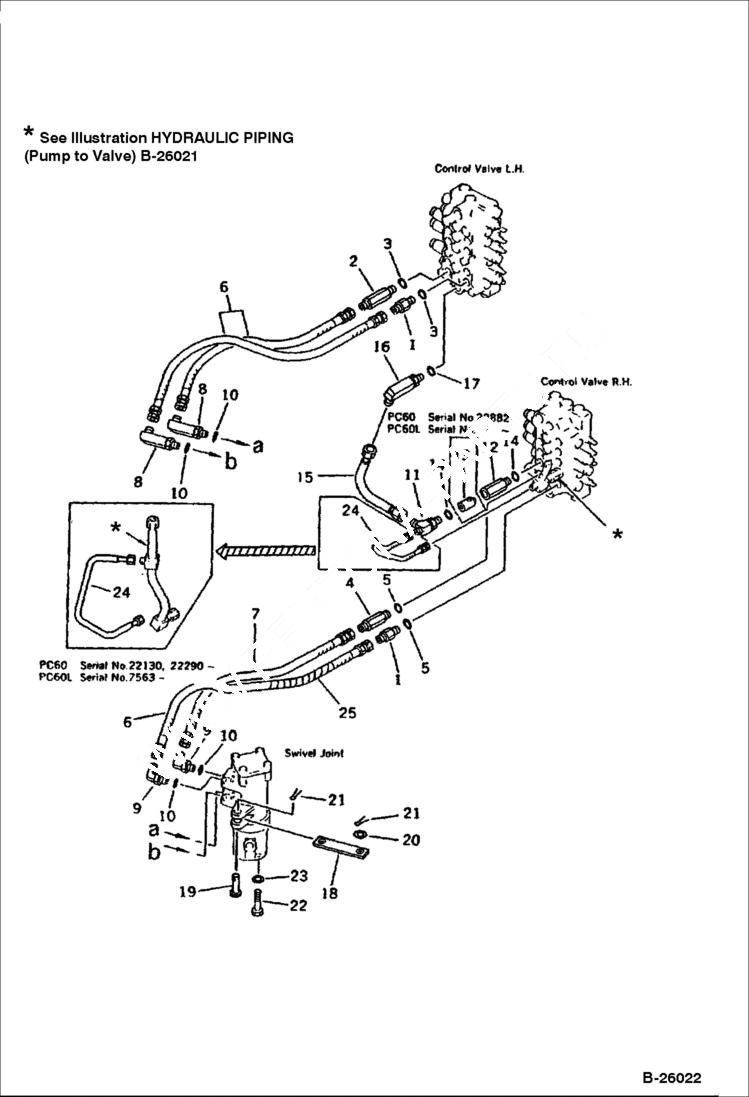

Запчасти Bobcat 130 HYDRAULIC PIPING VALVE TO/FROM SWIVEL JOINT HYDRAULIC SYSTEM

1

6639807

NIPPLE Komatsu S/N 20501 & Abv

2

6639223

NIPPLE Komatsu S/N 24643 & Abv

2

6637840

NIPPLE Komatsu S/N 20501-24642

3

6637417

O-RING

4

6639223

NIPPLE

5

6637417

O-RING

6

6637488

HOSE

7

6637487

HOSE

8

6638587

ELBOW

9

6637588

ELBOW

10

6637417

O-RING

11

6639811

ELBOW Komatsu S/N 20501-22129

11

ELBOW Komatsu S/N 22130 & Abv - Was 201-62-58630

11

6639811

ELBOW Komatsu S/N 22131-22289

11

ELBOW Komatsu S/N 22290 & Abv - Was 201-62-58630

12

6639225

BODY

13

6645596

VALVE Komatsu S/N 22882 & Abv

14

6637417

O-RING

15

6639812

TUBE

16

6639813

ELBOW

17

6637417

O-RING

18

6639081

LINK

19

6639080

PIN

20

6637149

WASHER

21

6637205

PIN, COTT

22

6636983

BOLT

23

6637158

WASHER

24

6639794

TUBE Komatsu S/N 20501-22129

24

TUBE Komatsu S/N 22130 & Abv - Was 201-62-51220

24

6639794

TUBE Komatsu S/N 22131-22289

24

TUBE Komatsu S/N 22290 & Abv - Was 201-62-51220

25

6639218

COVER
