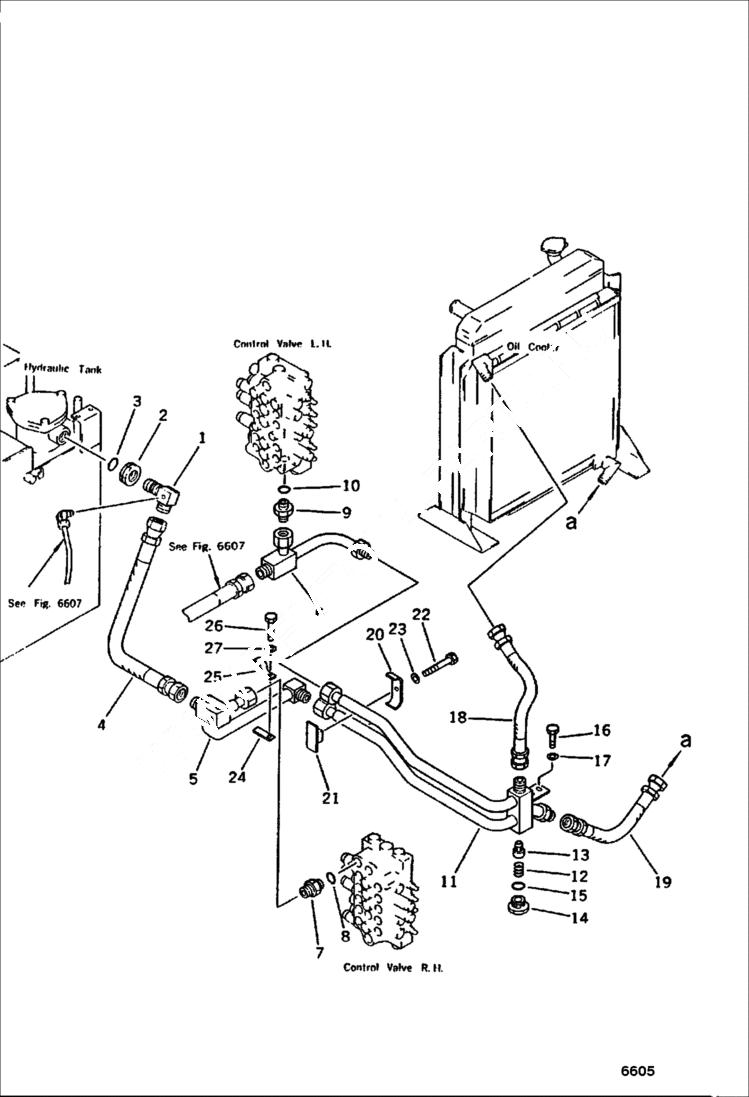

Запчасти Bobcat 130 HYDRAULIC PIPING VALVE TO TANK AND OIL COOLER HYDRAULIC SYSTEM

1

6639830

ELBOW

2

6637594

NUT

3

6637413

O-RING

4

6637503

HOSE

5

6639795

TUBE

6

6639796

TUBE

7

6637583

NIPPLE

8

6637411

O-RING

9

6637899

NIPPLE

10

6637412

O-RING

11

6639797

TUBE

12

6637876

SPRING

13

6639393

POPPET

14

6639820

PLUG

15

6637413

O-RING

16

6636967

BOLT

17

6637157

WASHER

18

6637501

HOSE

19

6637500

HOSE

20

6639092

CLAMP

21

6639091

BRACKET

22

6636967

BOLT

23

6637157

WASHER

24

6639809

PLATE

25

6637845

CLAMP

26

6636969

BOLT

27

6637157

WASHER
