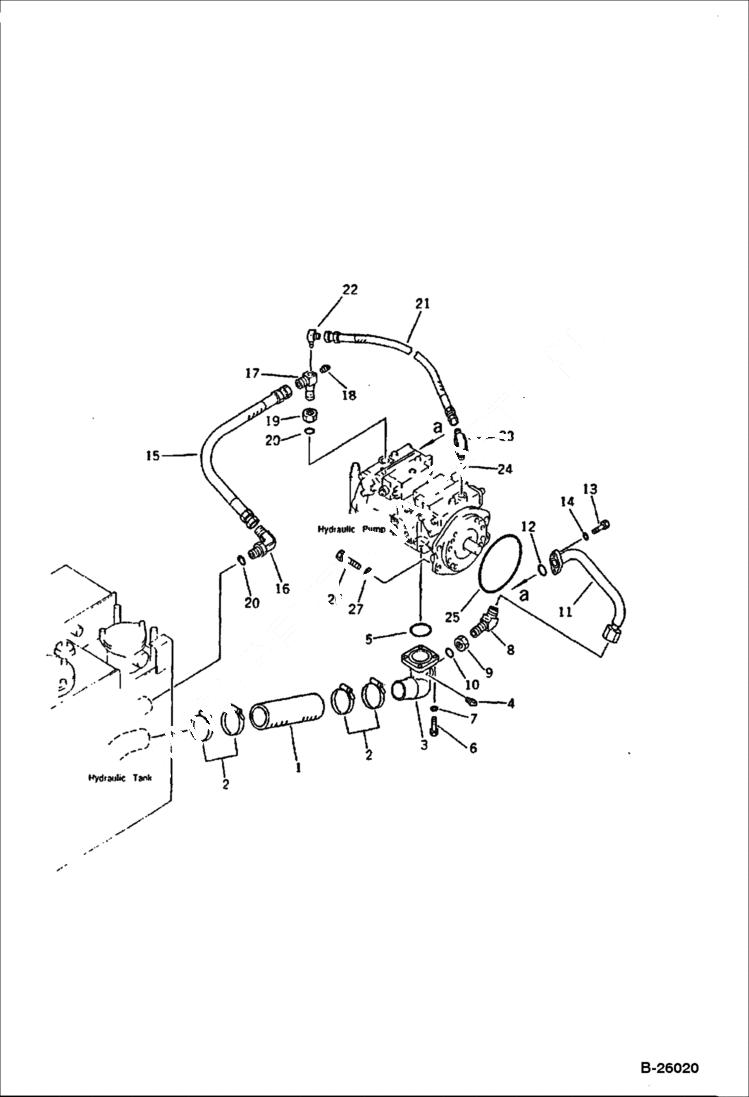

Запчасти Bobcat 130 HYDRAULIC PIPING TANK TO PUMP HYDRAULIC SYSTEM

1

6637607

HOSE

2

6637630

CLAMP

3

6639789

ELBOW

4

6637444

PLUG

5

6637344

O-RING

6

6636968

BOLT

7

6637157

WASHER

8

6637585

ELBOW

9

6637593

NUT

10

6637411

O-RING

11

6639790

TUBE

12

6637355

O-RING

13

6636968

BOLT

14

6637157

WASHER

15

6637501

HOSE

16

6637590

ELBOW

17

6639224

ELBOW

18

6637442

PLUG

19

6637593

NUT

20

6637411

O-RING

21

6637496

HOSE

22

6638542

ELBOW

23

6637588

ELBOW

24

6637410

O-RING

25

6637365

O-RING

26

6636982

BOLT

27

6637158

WASHER
