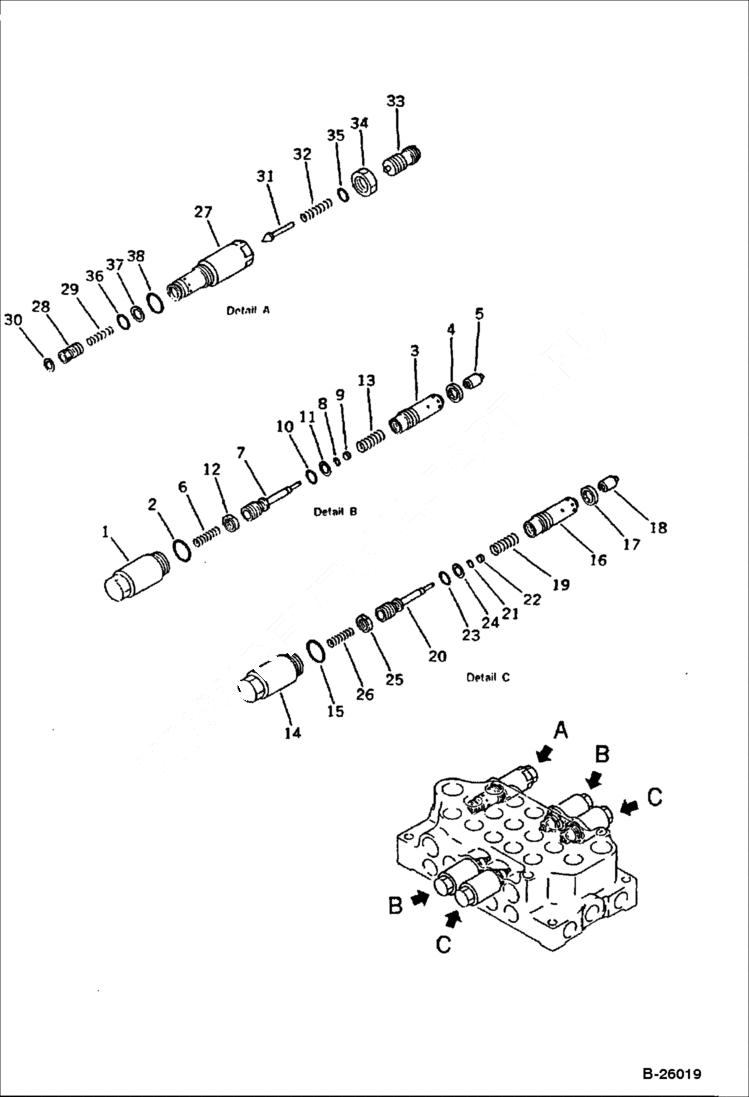

Запчасти Bobcat 130 CONTROL VALVE, R.H. 3/3 HYDRAULIC SYSTEM

1

6640543

VALVE ASY See Illustration CONTROL VALVE, R.H./ B26017 See Illustration CONTROL VALVE, R.H./ B26018

1

VALVE ASSY suction & safety - Was 709-20-61201

1

6640528

VALVE suction & safety

1

6646117

SLEEVE

2

6640542

O-RING

3

6646118

VALVE

4

6646127

SEAL

5

POPPET Was 709-20-61130

6

SPRING Was 709-20-61150

7

6646120

PISTON

8

O-RING Was 709-20-61210

9

SEAL Was 709-20-61220

10

6637368

O-RING

11

6637394

RING, BAC

12

NUT Was 709-20-61171

12

NUT Was 709-20-61170

13

SPRING Was 709-20-61160

14

VALVE ASSY suction & safety - Was 709-20-61102

14

VALVE ASS'Y, SUCTION AND SAFETY Was 709-20-61301

14

SLEEVE Was 709-20-61110

15

6640542

O-RING

16

6646118

VALVE

17

SEAL Was 709-20-61230

18

Was 709-20-61130

19

6646875

SPRING

20

6646120

PISTON

21

O-RING Was 709-20-61210

22

SEAL Was 709-60-61220

23

6637368

O-RING

24

6637394

RING, BAC

25

NUT Was 709-20-61170

25

NUT Was 709-20-61171

26

SPRING Was 709-20-61160

27

6643221

VALVE ASSY 300kg/cm2

27

6646115

SLEEVE

28

6646116

VALVE

29

6640526

SPRING

30

6640217

RING

31

6640258

POPPET

32

6640525

SPRING

33

SCREW Was 709-20-51280

34

6637114

NUT

35

6637335

O-RING

36

6640243

O-RING

37

6640259

RING

38

6637411

O-RING
