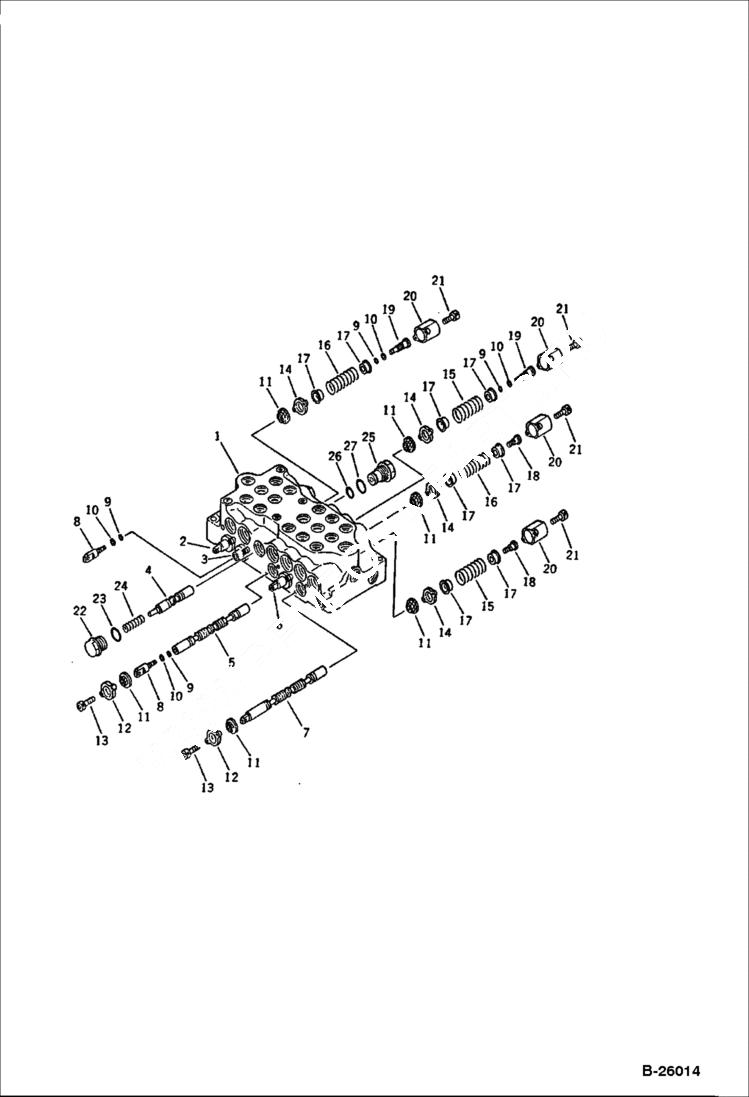

Запчасти Bobcat 130 CONTROL VALVE, L.H. 1/3 HYDRAULIC SYSTEM

1

VALVE ASSY See Illustration CONTROL VALVE, L.H./ B26016 See Illustration CONTROL VALVE, L.H./ B26015 control - L.H. - Was 709-26-11303

1

6640550

VALVE ASY See Illustration CONTROL VALVE, L.H./ B26016 See Illustration CONTROL VALVE, L.H./ B26015 control - L.H.

1

6646873

BODY valve - Was 709-26-11112

2

SPOOL L.H. travel - Was 709-25-11550

3

SPOOL arm low - Was 709-26-11340

4

SPOOL swing - priority - Was 709-25-11230

5

SPOOL swing - Was 709-25-11220

6

SPOOL boom high - Was 709-26-11311

7

6646131

SPOOL service - Was 709-26-11210

8

6640538

CONNECTOR

9

6637366

O-RING

10

6637392

RING

11

6640534

SEAL

12

6640536

SHIELD

13

6637050

BOLT

14

6640535

SHIELD

15

6640250

SPRING

16

6640235

SPRING

17

6640234

RETAINER

18

6640236

PLUG

19

6640537

PLUG

20

6640237

COVER

21

6637050

BOLT

22

6640545

PLUG

23

6637411

O-RING

24

6640544

SPRING

25

6640546

NIPPLE

26

6637338

O-RING

27

6637411

O-RING
