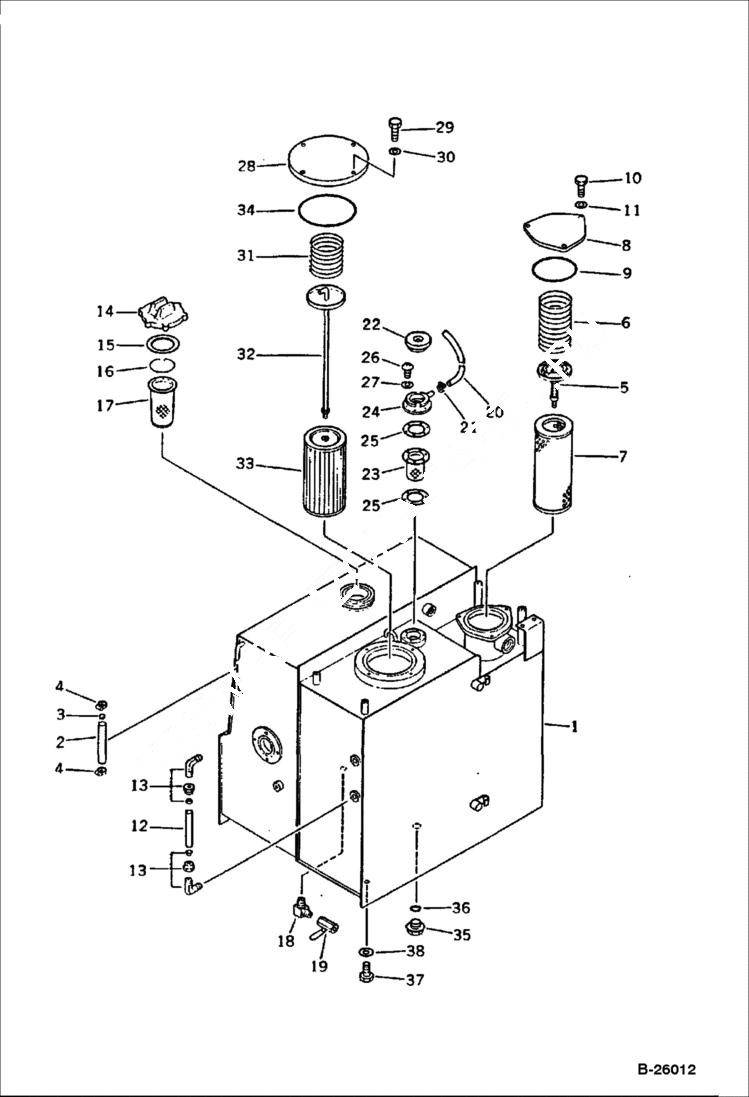

Запчасти Bobcat 130 HYDRAULIC OIL AND FUEL TANK 1/2 HYDRAULIC SYSTEM

1

6643023

TANK ASY See Illustration HYDRAULIC OIL AND FUEL TANK/ B26013 Komatsu S/N 20501-24642

1

TANK ASS'Y See Illustration HYDRAULIC OIL AND FUEL TANK/ B26013 Komatsu S/N 24643 & Abv - Was 20X-60-00021

1

6639784

TANK, HYD

2

6639216

TUBE

3

6639025

FLOAT

4

6637622

CLAMP

5

6637858

VALVE ASSY

6

6639787

SPRING

7

6637881

FILTER

8

6639788

COVER

9

6637352

O-RING

10

6636967

BOLT

11

6637157

WASHER

12

6639214

TUBE

13

6639213

ELBOW ASSY

14

6637469

CAP

15

6637471

GASKET

16

6637475

RING, SNAP

17

6637474

SCREEN

18

6637904

ELBOW

19

6637650

VALVE

20

6639210

TUBE

21

6637616

CLAMP

22

6639083

CAP

23

6639395

SCREEN

24

6639082

INLET, NE

25

6639394

GASKET

26

6637033

SCREW

27

6637126

WASHER

28

6639786

COVER

29

6636967

BOLT

30

6637157

WASHER

31

6637859

SPRING

32

6639785

ROD

33

6639211

STRAINER

34

6637352

O-RING

35

6637453

PLUG

36

6637411

O-RING

37

6636980

BOLT

38

6637158

WASHER
