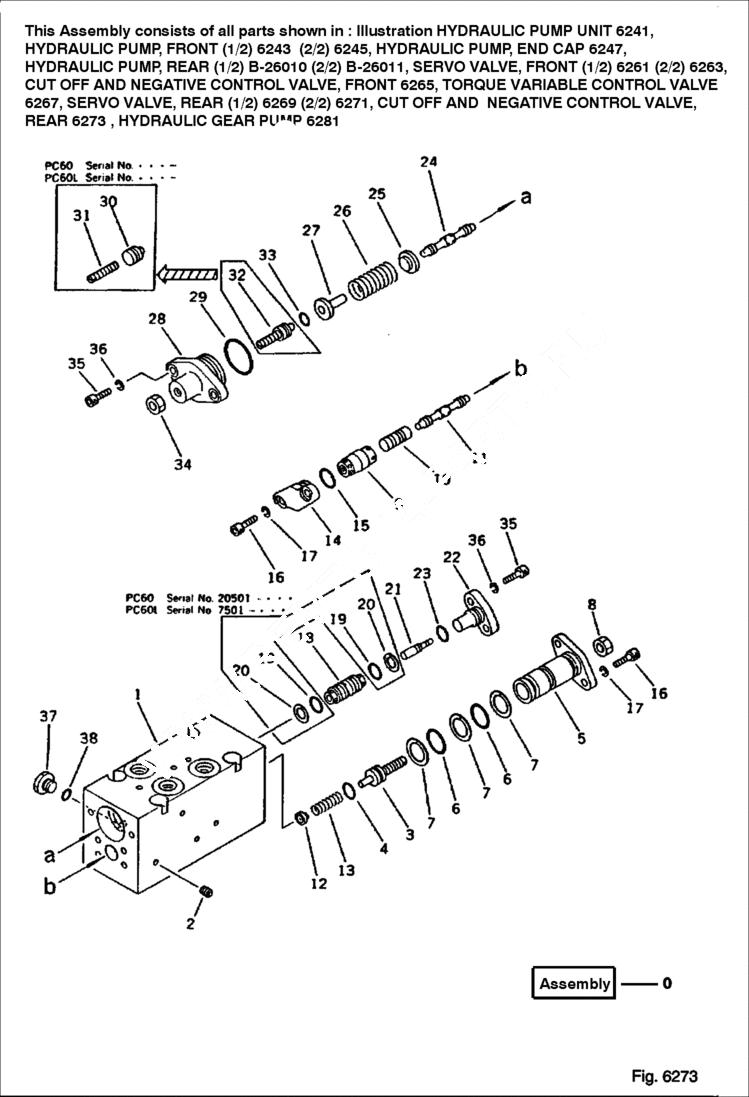

Запчасти Bobcat 130 CUT OFF AND NEGATIVE CONTROL VALVE Rear HYDRAULIC SYSTEM

0

6651244

PUMP hydraulic assy. (HPV 35+35)

0

PUMP ASSY hydraulic (HPV 35+35) - Was 708-21-01031

0

PUMP ASSY hydraulic (HPV 35+35) - Was 708-21-010301

0

6640466

PUMP ASSY hydraulic (HPV 35+35)

0

VALVE ASSY See Illustration SERVO VALVE/ 6269 See Illustration SERVO VALVE/ 6271 servo - rear - Was 708-21-07211

0

VALVE ASSY See Illustration SERVO VALVE/ 6269 See Illustration SERVO VALVE/ 6271 servo - rear - Was 708-21-07210

0

6640476

VALVE ASSY See Illustration SERVO VALVE/ 6269 See Illustration SERVO VALVE/ 6271

0

VALVE ASSY CO & NC - Was 708-21-07611

0

VALVE ASSY CO & NC - Was 708-21-07610

0

6640479

VALVE ASSY CO & NC

1

BODY ASS'Y Was 708-23-07032

1

BODY ASSY Was 708-23-07031

1

BODY ASSY Was 708-23-07030

1

BODY Was 708-21-17112

1

BODY Was 708-21-17110

2

6640505

EXPANDER plug

2

PLUG Was 720-68-19740

3

PLUG Was 708-23-17260

4

O-RING Was 07000-02010

5

6640506

COVER

6

6637374

O-RING

7

6637398

RING, BAC

8

6637107

NUT

9

6640489

SLEEVE

10

6640488

PISTON

11

SPOOL Was 708-25-17141

12

6640509

SEAT

13

6640490

SPRING

14

6640508

COVER

15

6637337

O-RING

16

6640502

BOLT

16

6637050

BOLT

17

6637133

WASHER

18

SLEEVE Was 708-25-17211

18

6640510

SLEEVE

19

6637370

O-RING

20

RING,BACK-UP Was 07001-02012

21

6640511

PISTON

22

6640512

COVER

23

6637336

O-RING

24

SPOOL Was 708-25-17141

24

6640507

SPOOL

25

SEAT Was 708-25-17370

25

6640513

SEAT

26

6640514

SPRING

27

6640515

SEAT

28

6640516

COVER

29

6637355

O-RING

30

PLUG Was 708-25-17410

31

6640504

SCREW

32

6640517

PLUG

33

6637334

O-RING

34

6637107

NUT

35

6640502

BOLT

35

6637050

BOLT

36

6637133

WASHER

37

6637434

PLUG

38

6637407

O-RING
